Installing brake pedal

Fig 1: Overview of brake pedal

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1 - Brake light switch

2 - Pedal axle

4 - Threaded bushing

5 - Bolt

6 - Brake pushrod

7 - Brake pedal

8 - Bearing sleeves

1. Grease the bracket for the brake pedal.

Grease bracket in area of pedal bearing axle -Arrows- with Renocal (Glissando VW 745). Part No. 000.043.206.21 (10g tube). See Fig 1.

2. Insert brake pedal.

Turn the brake pedal -7- and brake pushrod -6- as required. See Figure.

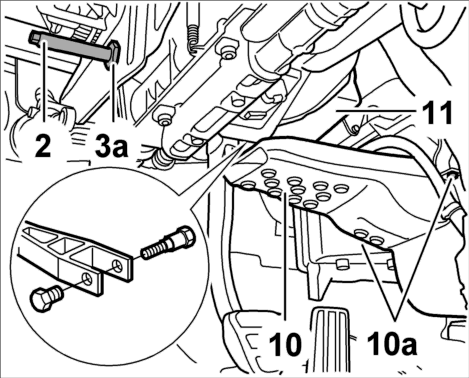

Fig 2: Brake pedal

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Fit brake pushrod on brake pedal.

Tighten bolt, see -Inset- . See Fig 2.

→ Tightening torque: +10 (7.5 ftlb.) Nm

4. Install pedal axle.

Tighten pedal axle -2- . See Fig 2.

→ Tightening torque: +10 (7.5 ftlb.) Nm -2 (1.5 ftlb.) Nm
