Removing Cover For Rear Underbody: Notes

Installation Location:

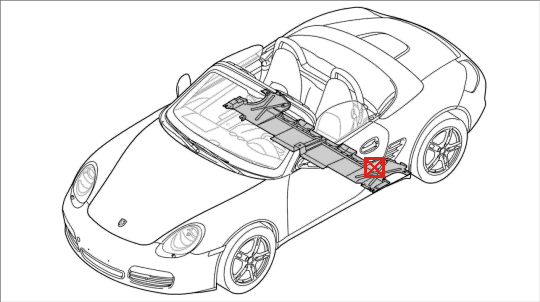

Fig 1: Cover For Rear Underbody Component Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

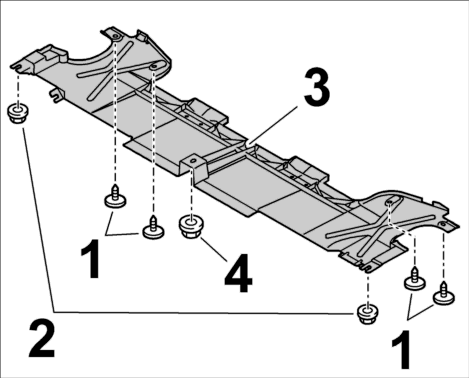

Fig 2: Removing cover for rear underbody

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Unscrew fastening screws -1-  and fastening nuts -2, 4-  . See Fig 2.

2. Pull cover for rear underbody -3-  out of the overlap. See Fig 2.
