Installing Cover For Front Underbody

Installation Location:

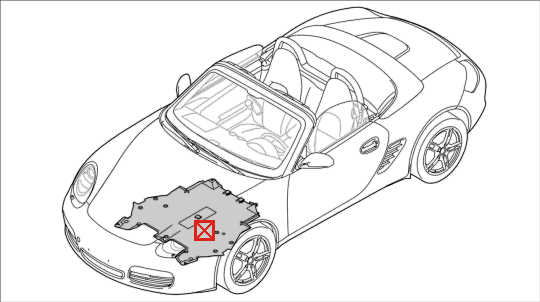

Fig 1: Installation position of cover for front underbody

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: When pushing in the underside panel, make sure the overlap is correct.

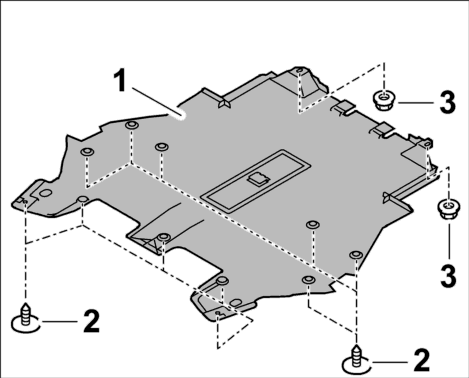

Fig 2: Install cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Insert cover for front underbody -1- . See Fig 2.

2. Tighten fastening screws -2- . Tightening torque → Final tightening: 1.5 ftlb. See Fig 2.

3. Tighten fastening nuts -3- . Tightening torque → Final tightening: 0.5 ftlb. See Fig 2.
