Preparing Connection Areas Of Body For Installing Seat Cross Member

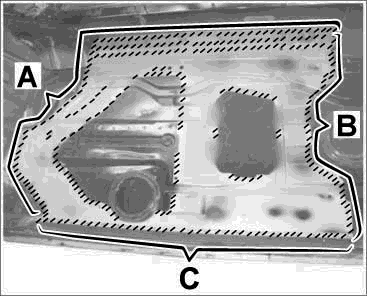

Fig 1: Preparing connection areas of body for installing seat cross member
GP00011549Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 1.
