Removing Deformation Element

→ It is impermissible to perform repairs on the deformation element.

→ The deformation elements must be replaced in the event of visible damage or pressure marks.

1. Release electric line slightly upwards.

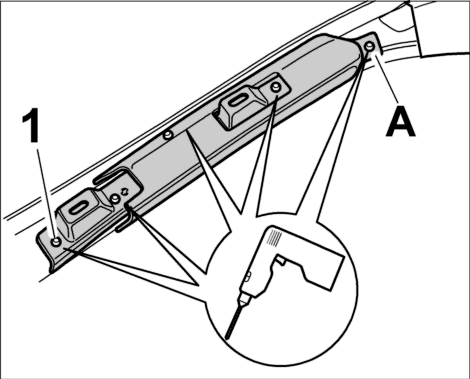

Fig 1: Deformation Element Component Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Drill out blind rivets -1-  with a 4 mm drill and remove the deformation element -A-  . See Fig 1.
