Installing Deformation Element

CAUTION: Danger of injury by damaged deformation elements!

→ It is impermissible to perform repairs on the deformation element.

→ The deformation elements must be replaced in the event of visible damage or pressure marks.

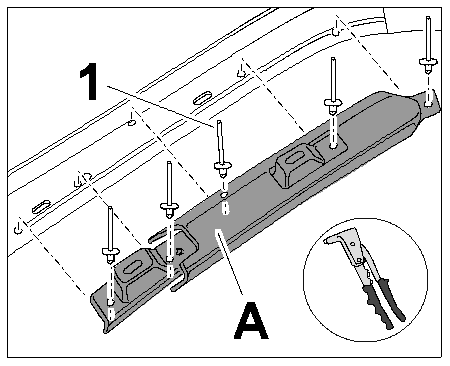

Fig 1: Installing deformation element

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Position deformation element -A- on inner cowl panel and rivet down using blind rivets -1- . See Fig 1.

2. Press in electric line on cowl panel frame.
