Installing Outer Lower Side Member

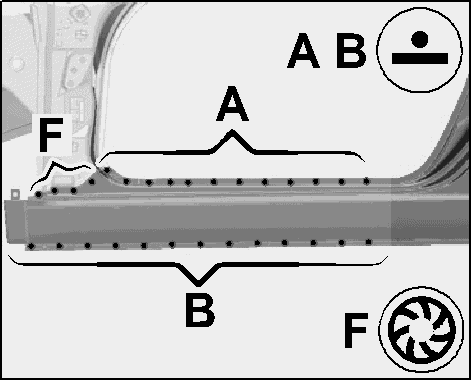

Fig 1: Installing outer lower side member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Welding in outer lower side member

1.1. Fix the outer lower side member with tensioning clamps.

1.2. Tack-weld the outer lower side member.

WARNING: Welding in body components

Danger of injury and material damage

→ Once the spare parts have been fixed in place, repair spotwelds must be placed on the old spotwelds because there is no current flow possible in areas with a hardened adhesive layer. Welding procedures other than resistance spot-welding are not permitted since the thermal effect would destroy the bonded joint over a wide area. Refer to 50 IN Processing structural body adhesive - as of MY 2005 (All Models) .

1.3. Spot-weld areas A, B on the lower side member.

1.4. Plug-weld the lower side member in area F using inert gas.

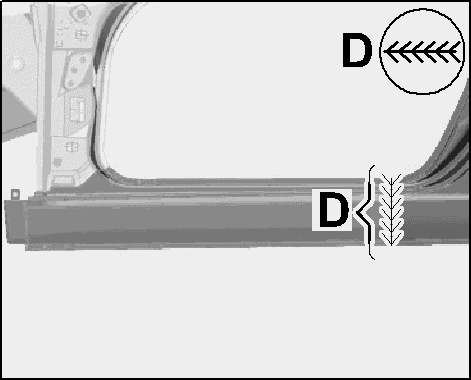

Fig 2: Welding joints using inert gas

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Welding joint using inert gas

2.1. Weld joints D (B-pillar) with a continuous weld using inert gas.

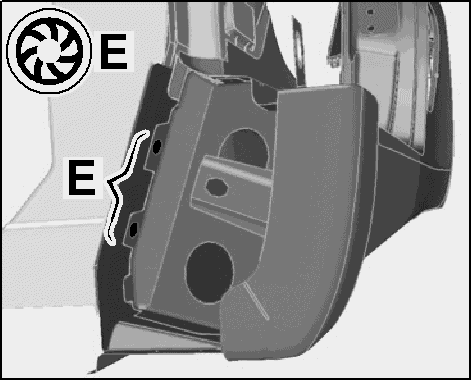

Fig 3: Welding the web plate using inert gas

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Weld the web plate using inert gas

3.1. Plug-weld web plate using inert gas in area E .
