Removing Windscreen Frame

Installation Location:

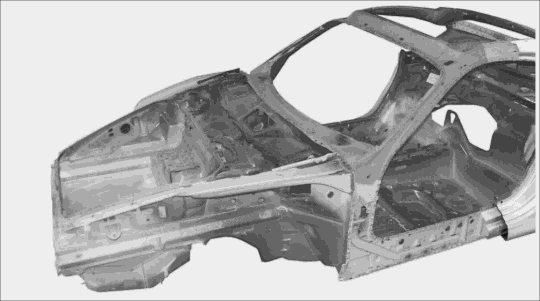

Fig 1: Windscreen Frame Component Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

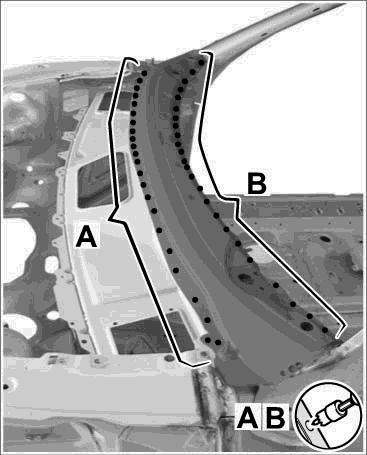

Fig 2: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Milling off spotwelds

2.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter. See Fig 2.

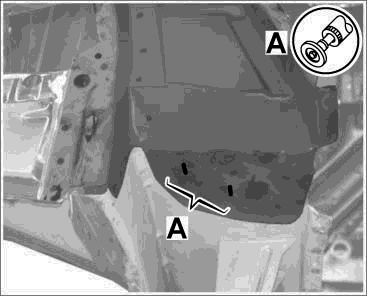

Fig 3: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Cutting spotwelds at the left and right

3.1. Mill off spotwelds at the left and right in areas -A- and -B- using a spotweld cutter. See Fig 3.

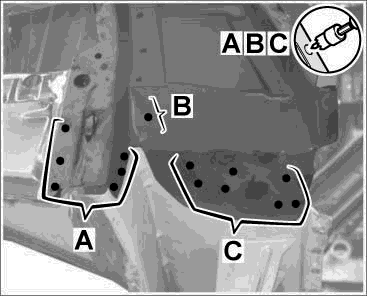

Fig 4: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Milling off spotwelds

4.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter. See Fig 4.

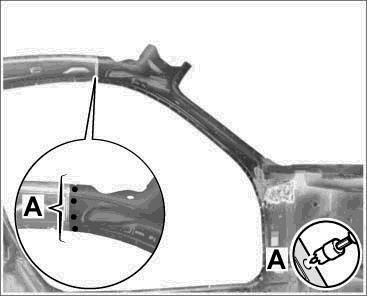

Fig 5: Separating inert-gas welded seams at the left and right

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Separating inert-gas welded seams at the left and right

5.1. Separate inert-gas welded seams at the left and right in areas -A- and -B- using a parting grinder. See Fig 5.

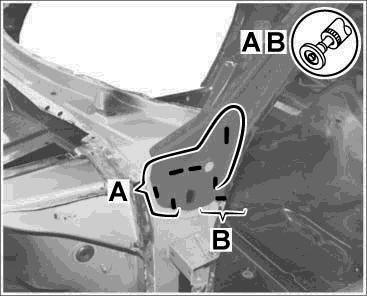

Fig 6: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Milling off spotwelds

6.1. Mill off spotwelds in area -A- using a spotweld cutter. See Fig 6.

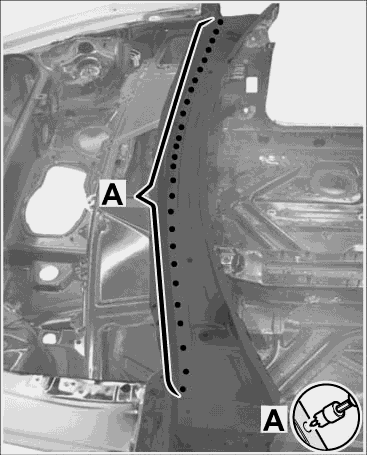

Fig 7: Cutting spotwelds at the left and right

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Cutting spotwelds at the left and right

7.1. Mill off spotwelds at the left and right in areas -A- and -B- using a spotweld cutter. See Fig 7.

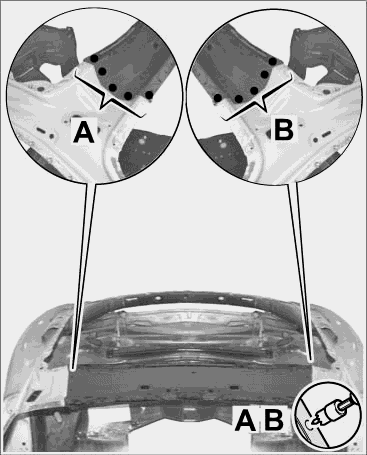

Fig 8: Separating inert-gas welded seams at the left and right

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Separating inert-gas welded seams at the left and right

8.1. Separate inert-gas welded seams at the left and right in area -A- using a parting grinder. See Fig 8.
