Removing Rear Cross Member

Installation Location:

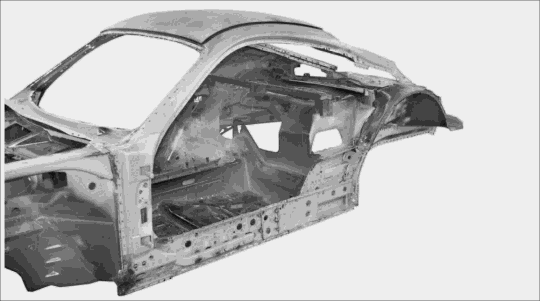

Fig 1: Rear Cross Member Component Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

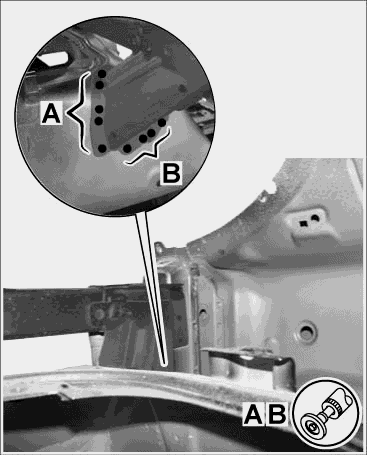

Fig 2: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Milling off spotwelds

2.1. Mill off spotwelds on the left in area -A- and -B- using a spotweld cutter. See Fig 2.

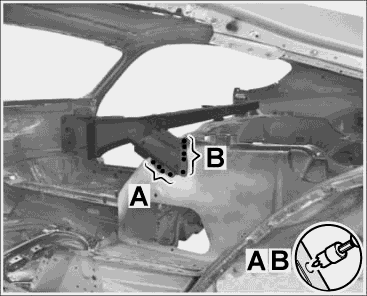

Fig 3: Separating inert-gas welded seams

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Separating inert-gas welded seam

3.1. Separate inert-gas welded seam on the left in area -A- using a parting grinder. See Fig 3.

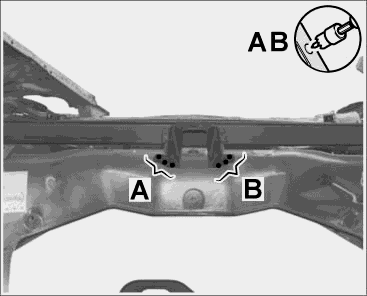

Fig 4: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Milling off spotwelds

4.1. Mill off spotwelds in area -A- and -B- using a spotweld cutter. See Fig 4.

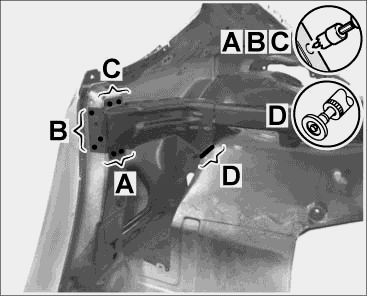

Fig 5: Milling off and separating welded joints

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Milling off and separating welded joints

5.1. Mill off spotwelds on the right in areas -A, B, C- using a spotweld cutter. See Fig 5.

5.2. Separate inert-gas welded seam on the right in area -D- using a parting grinder. See Fig 5.

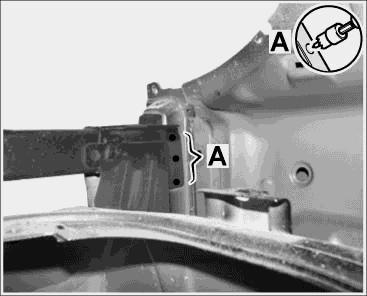

Fig 6: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Milling off spotwelds

6.1. Mill off spotwelds on the right in area -A- using a spotweld cutter. See Fig 6.

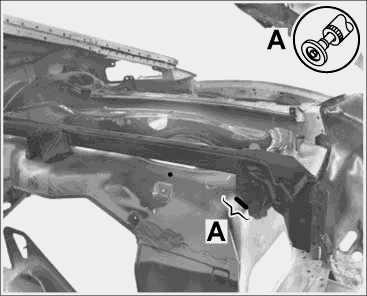

Fig 7: Separating spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Separating spotwelds

7.1. Separate spotwelds on the right in area -A- and -B - using a parting grinder. See Fig 7.
