Installing Rear Cross Member

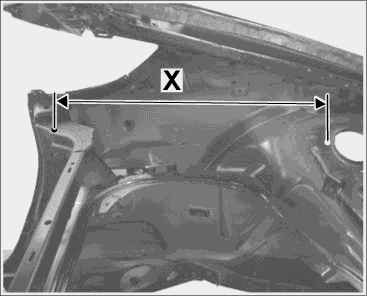

Fig 1: Fitting rear cross member to the body

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Fitting rear cross member to the body

1.1. Fit rear cross member on the body and use a beam compass to adjust to the dimension -X= 620 mm +/- 1 mm- on the right and left. See Fig 1.

1.2. Secure the rear cross member with tensioning clamps.

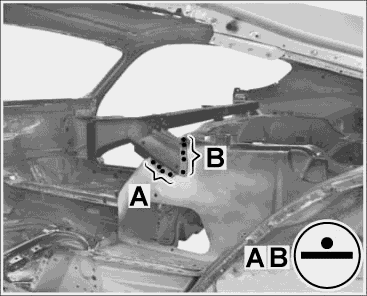

Fig 2: Welding in rear cross member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Welding in rear cross member

2.1. Plug weld the rear cross member on the left in area -A- and -B- using shielding gas. See Fig 2.

NOTE: Only with engine removed!

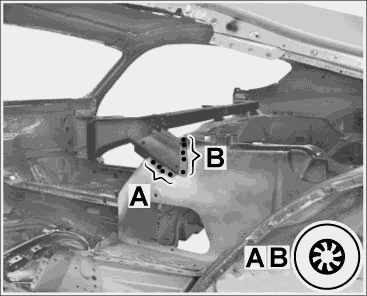

Fig 3: Welding in rear cross member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Welding in rear cross member

3.1. Resistance spot-weld the rear cross member on the left in area -A- and -B- . See Fig 3.

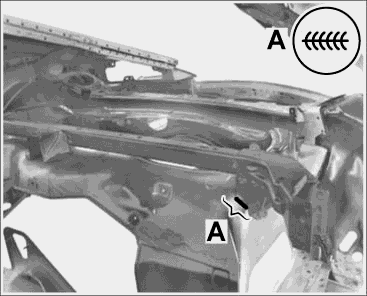

Fig 4: Welding in rear cross member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Welding in rear cross member

4.1. Apply a full weld to the rear cross member on the left in area -A- using shielding gas. See Fig 4.

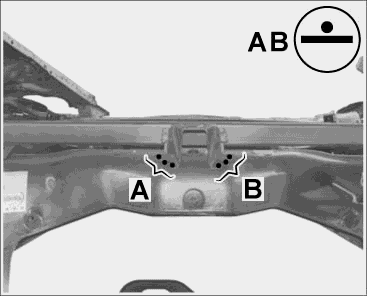

Fig 5: Welding in rear cross member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Welding in rear cross member

5.1. Plug weld the rear cross member in area -A- and -B- using shielding gas. See Fig 5.

NOTE: Only with engine removed!

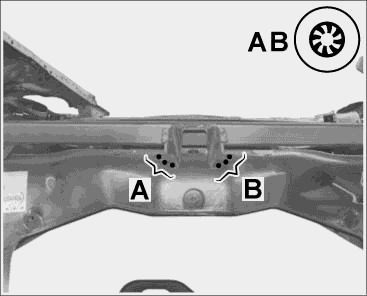

Fig 6: Welding in rear cross member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Welding in rear cross member

6.1. Resistance spot-weld rear cross member in area -A- and -B- . See Fig 6.

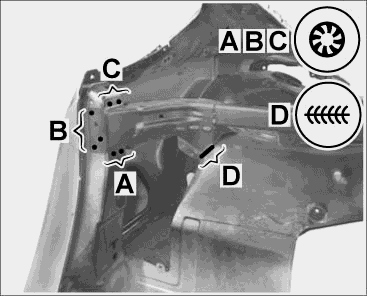

Fig 7: Welding in rear cross member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Welding in rear cross member

7.1. Plug-weld the rear cross member on the right in the areas -A, B, C- using shielding gas. See Fig 7.

7.2. Apply a full weld to the rear cross member on the right in area -D- using shielding gas. See Fig 7.

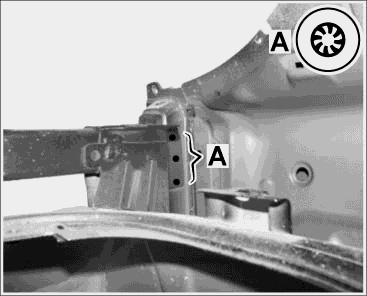

Fig 8: Welding in rear cross member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Welding in rear cross member

8.1. Plug weld the rear cross member on the right in area -A- using shielding gas. See Fig 8.

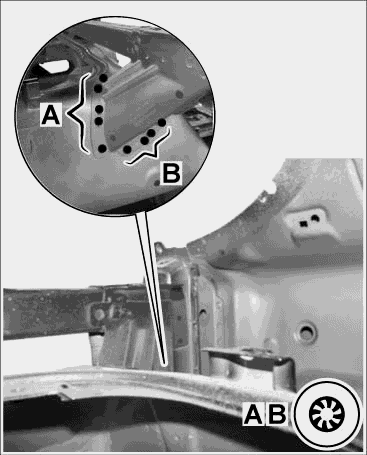

Fig 9: Welding in rear cross member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

9. Welding in rear cross member

9.1. Plug weld the rear cross member on the right in area -A- and -B- using shielding gas. See Fig 9.
