Overview, undersealing

NOTE:
  • In the case of repair work, the standard stone shield/undersealing of the body structure must be restored before painting or unit assembly, according to the following illustrations.
  • The undersealing can only be applied to primed sheetmetal.

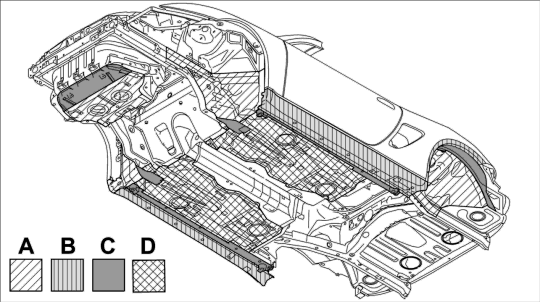

Fig 1: Overview, undersealing
GP00011041Courtesy of PORSCHE OF NORTH AMERICA, INC.
