Bottom of rear end, layout plan

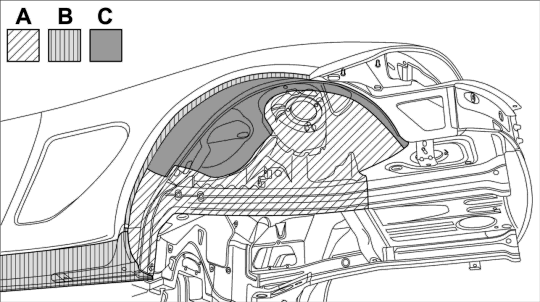

Fig 1: Bottom of rear end, layout plan
GP00011043Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - 0.4 mm to 0.6 mm

B - 0.6 mm to 0.8 mm

C - 1 mm to 1.3 mm
