2-component SIP

CAUTION: Adhesion of the bonded joint will be impaired if the primer is not processed correctly.

→ Process mixed primer within eight hours; do not keep any leftover primer.

→ The adhesive flange must be coated thinly and evenly with primer. Remove excess material.

→ Protect primed surfaces from soiling.

NOTE:

Primed surfaces can be stored in the open for a maximum of three days before undergoing further processing. When doing so, make sure that the surfaces are not soiled by the surrounding environment. After standing in the open for more than three days, the primer must be removed and reapplied. For this reason, body parts must be stuck immediately after the primer has been applied.

1. Prepare adhesive flange for sticking. (see Processing adhesives)

Fig 1: Opening bottle

GP00018500

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Open bottle for component A.

Fig 2: Filling with component B

GP00018501

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Fill bottle completely with component B.

Fig 3: Screwing on spray head

GP00018502

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Screw on spray head.

Fig 4: Mixing components

GP00018503

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Mix components together by shaking vigorously.

6. Clean adhesive flange with isopropanol and allow it to flash off.

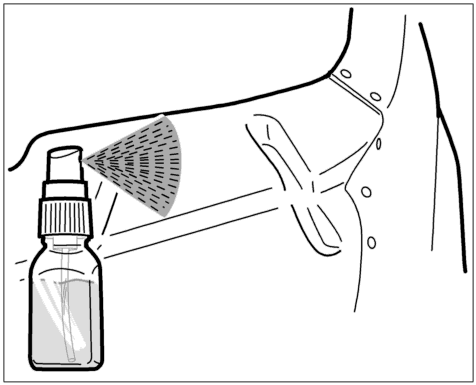

Fig 5: Applying primer

GP00018504

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Spray on primer in the area around the adhesive flange.

7.1. Process mixed primer within eight hours; do not keep any leftover primer.

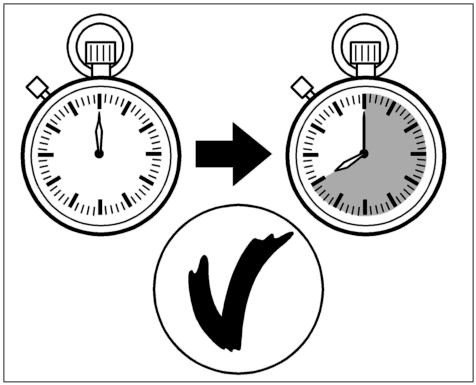

Fig 6: Working time of 2-component SIP

GP00018505

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Check primer application.

Adhesive flanges are coated evenly with primer:

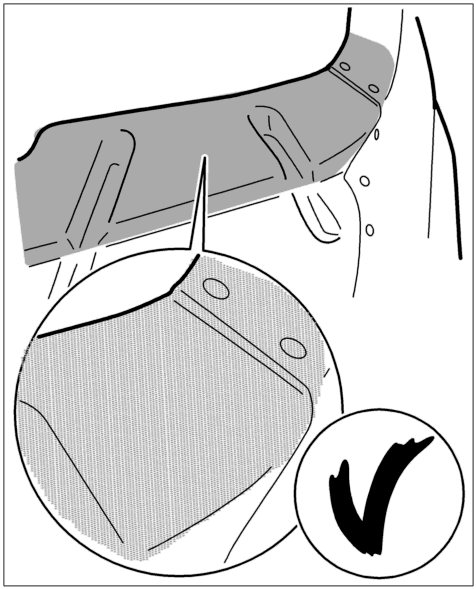

Fig 7: Primer application OK

GP00018507

Courtesy of PORSCHE OF NORTH AMERICA, INC.

result is OK.

Remove excess primer with a clean, dry cloth.

Fig 8: Removing excess primer

GP00018508

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A thin, violet-colored coating of primer is sufficient for the adhesive flanges.

Adhesive flanges are not evenly coated (droplet formation):

result is not OK.

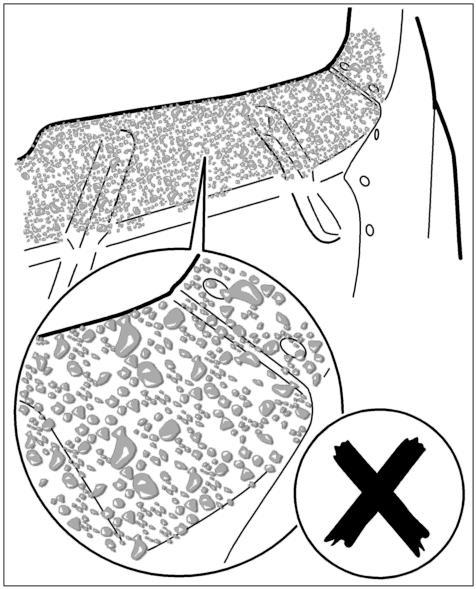

Fig 9: Primer application incorrect

GP00018506

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Using wet sandpaper (approx. 200 grit) or a sanding fleece, rub the primer film, which is still damp, around the flange area until an even application of primer is achieved. If an even application of primer is not obtained, the adhesive flange must be completely cleaned, sanded and primed once again.

9. Dry primer.

9.1. Allow primer to flash off; it must be dust-dry before any adhesive is applied.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Primer		Flash-off time	5 min

10. Process adhesive.
