Wheel housing and rear side section

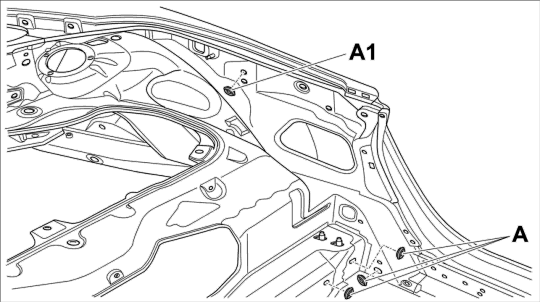

Fig 1: Wheel housing and rear side section
GP00011055Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Rubber grommet hole Ø 20 mm

A1 - Rubber grommet hole (Cabriolet only) Ø 20 mm
