Top of rear end

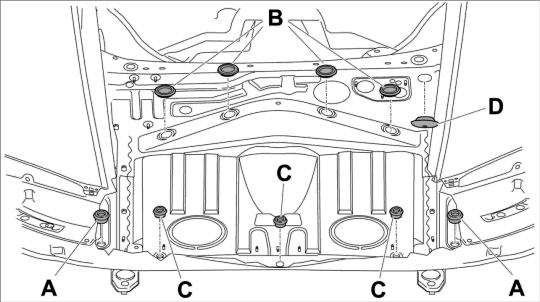

Fig 1: Top of rear end

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Rubber grommet hole Ø 20 mm

B - Rubber grommet hole Ø 30 mm

C - Plug hole Ø 10 mm

D - Plug hole Ø 20 mm x 25 mm

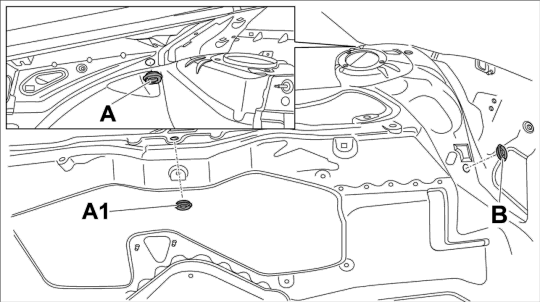

Fig 2: Top of rear end

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Rubber grommet hole Ø 20 mm

A1 - Rubber grommet hole Ø 20 mm to be set from underneath

B - Cap hole Ø 23 mm

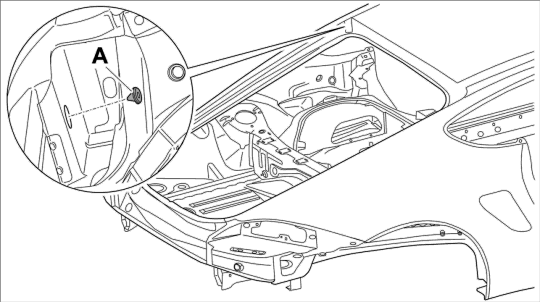

Fig 3: Sealing channel, upper rear

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Plug hole Ø 15 mm
