Side of front of vehicle

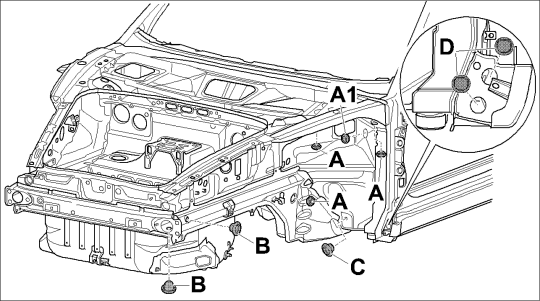

Fig 1: Side of front of vehicle
GP00018605Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Rubber grommet hole Ø 20 mm

A1 - Rubber grommet hole (only when no sliding roof) Ø 20 mm

B - Plug hole Ø 10 mm

C - Plug hole Ø 15 mm

D - Rubber grommet hole Ø 30 mm
