Bottom of engine compartment bulkhead

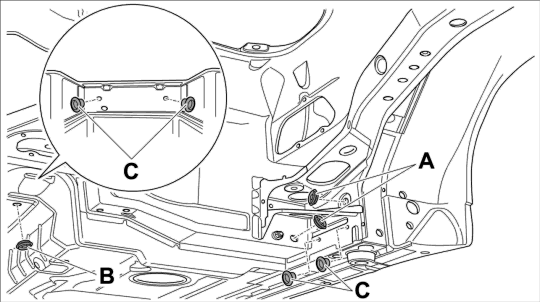

Fig 1: Bottom of engine compartment bulkhead

GP00011054

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Rubber grommet hole Ø 20 mm

B - Cap hole Ø 15 mm

C - Plug hole Ø 10 mm
