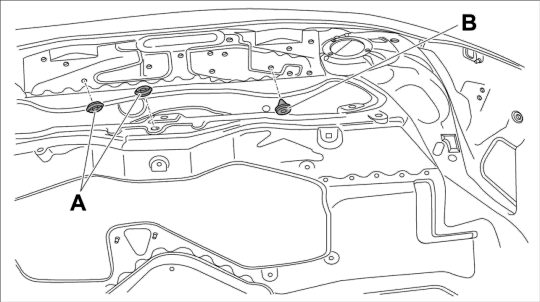

Top of rear end

Fig 1: Top of rear end

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Rubber grommet hole Ø 20 mm

B - Rubber grommet hole Ø 30 mm

C - Plug hole Ø 10 mm

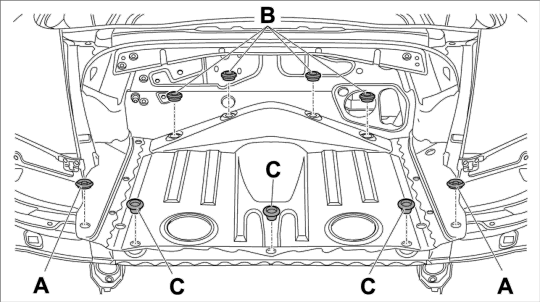

Fig 2: Top of rear end

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A - Rubber grommet hole Ø 20 mm

B - Plug hole Ø 15 mm
