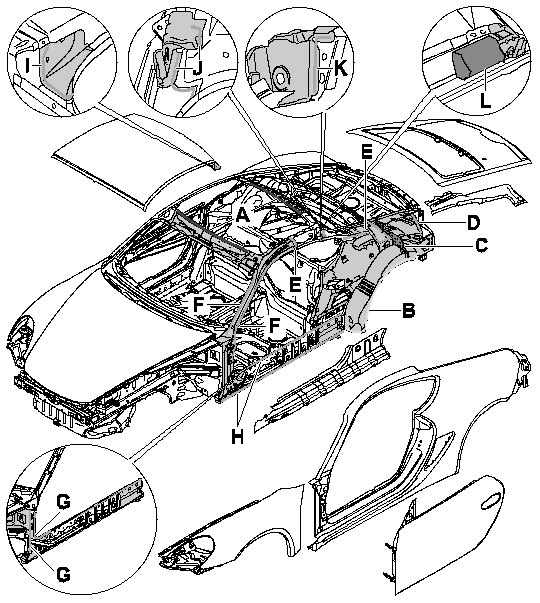

Diagram Of Body Bonding Points And Sealing Elements
Installation Location:
A - Bonding area for cowl panel frame, roof frame. Refer to 51 03 55 Replacing roof - as of MY 2006 (Cayman S, Cayman S RHD) .
B - Spot welding/bonding procedure in area of wheel housing, inner side section and outer side section. Refer to 53 55 55 Replacing side section - as of MY 2006 (Cayman S, Cayman S RHD) .
C - Seal (moulded part) in area of inner side section and outer side section. Refer to 53 55 55 Replacing side section - as of MY 2006 (Cayman S, Cayman S RHD) .
D - Bonding procedure in light housing area. Refer to 53 55 55 Replacing side section - as of MY 2006 (Cayman S, Cayman S RHD) .
E - Rivet-bonding procedure in roof frame reinforcement area. Refer to 51 08 55 Replacing roof reinforcement - as of MY 2006 (Cayman S, Cayman S RHD) .
F - Resistance spot-welding/bonding procedure in cowl panel frame area. Manufacturer does not provide specific Instructions.
G - Resistance spot-welding/bonding procedure in hinge pillar reinforcement area. Refer to 51 62 55 Replacing hinge pillar reinforcement - as of MY 2006 (Cayman S, Cayman S RHD) .
H - Resistance spot-welding/bonding procedure in inner side member area. Manufacturer does not provide specific Instructions.
I - Bonding procedure in the area. Refer to 51 03 55 Replacing roof - as of MY 2006 (Cayman S, Cayman S RHD) .
J - Bonding procedure in the bulkhead panel area. Refer to 51 08 55 Replacing roof reinforcement - as of MY 2006 (Cayman S, Cayman S RHD) .
K - Bonding procedure in the bulkhead panel area. Refer to 51 08 55 Replacing roof reinforcement - as of MY 2006 (Cayman S, Cayman S RHD) .
L - Expanded sealant in the roof reinforcement is sealed using 2K acoustic filler foam when replacing the roof reinforcement. Refer to 51 08 55 Replacing roof reinforcement - as of MY 2006 (Cayman S, Cayman S RHD) .
The bonding and sealing elements must be replaced during repairs. The procedure is described in the relevant chapter on body repairs.
