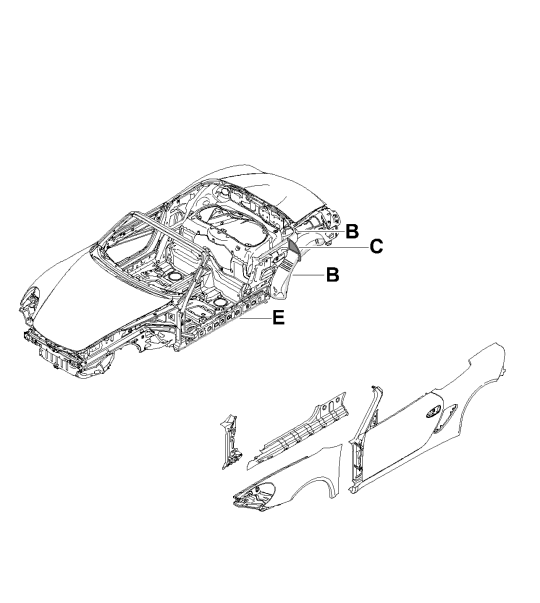

Diagram Of Body Bonding Points And Sealing Elements
Installation Location:
B - Spot welding/bonding method in area of wheel housing, inner side section and outer side section. Refer to 53 55 55 Replacing side section - as of MY 2005 (Boxster, Boxster RHD, Boxster S, Boxster S RHD) .
C - Seal (moulded part) in area of inner side section and outer side section. Refer to 53 55 55 Replacing side section - as of MY 2005 (Boxster, Boxster RHD, Boxster S, Boxster S RHD) .
E - Spot welding/bonding method in area of inner lower side member and inside of A-pillar.
The bonding and sealing elements must be replaced during repairs. The procedure is described in the relevant chapter on body repairs.
