Gap dimensions, hardtop

NOTE:

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap specifications.
Given a clearance in the opening that is too great or too small, the movable body or the accessories must be centerd accordingly.
Ensure that the gaps do not taper or do not narrow at local points.
The given values are guidelines which should be observed as far as possible.
The guidelines apply to repair and assembly work.
Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

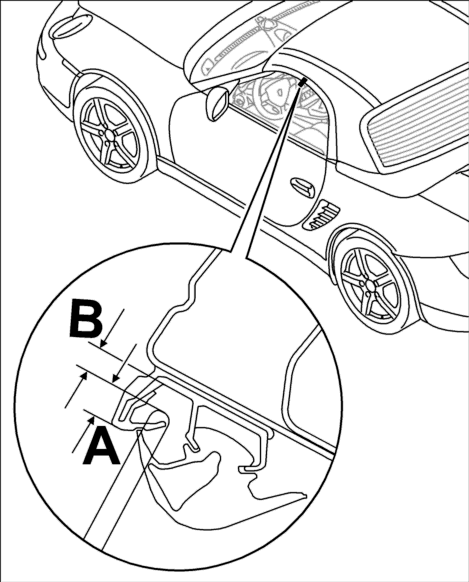

Fig 1: Windscreen frame to hardtop

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Windscreen frame to hardtop		Gap dimension A	6.5 mm	+/-1 mm
Windscreen frame to hardtop	Convertible top only lowered	Gap dimension B	1.5 mm

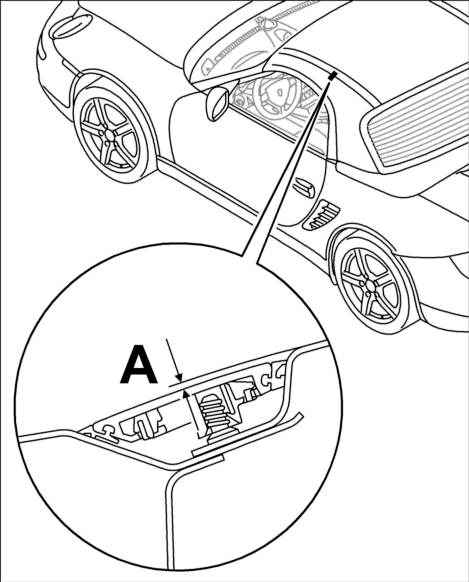

Fig 2: Windscreen frame to outer hardtop

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Windscreen frame to outer hardtop		Gap dimension A	5.8 mm
Windscreen frame to outer hardtop	Convertible top only lowered	Gap dimension B	1.5 mm

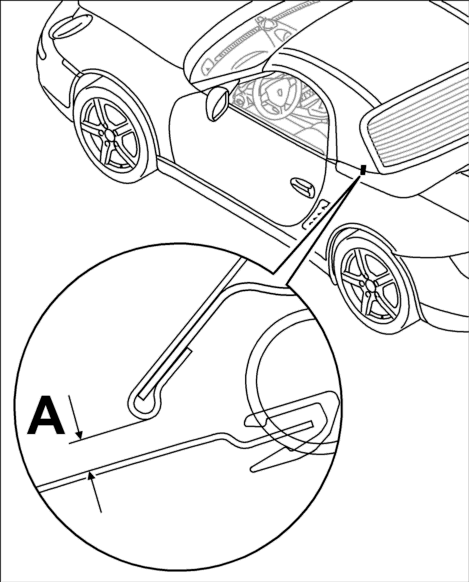

Fig 3: Hardtop to side window

Courtesy of PORSCHE OF NORTH AMERICA, INC.

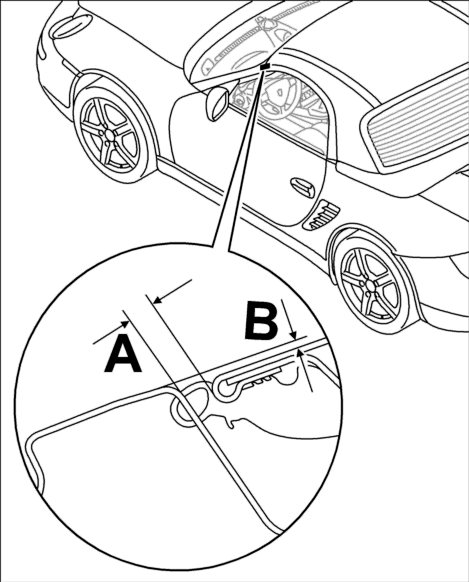

Fig 4: Roof joint strip to hardtop

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Roof joint strip to hardtop	Only lowered	Gap dimension A	0.7 mm

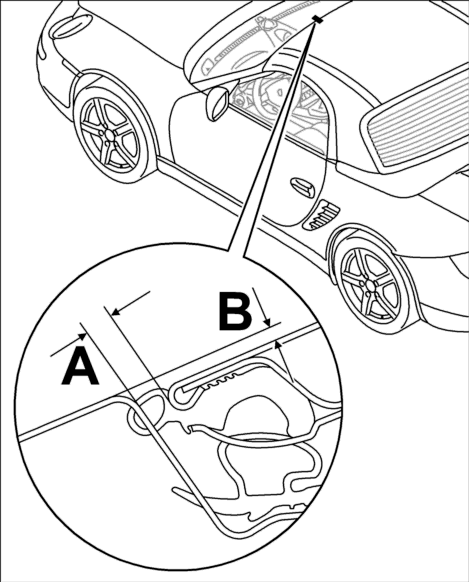

Fig 5: Hardtop body to cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Hardtop body to cover		Gap dimension A	5.5 mm	+/-3.5 mm

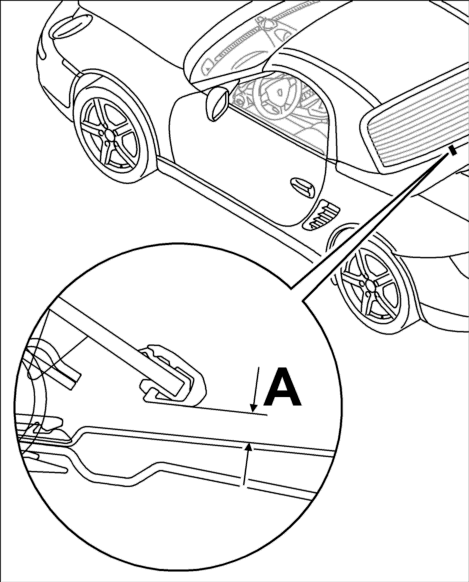

Fig 6: Hardtop to convertible top-compartment lid

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Hardtop to side convertible-top compartment lid		Gap dimension A	5.5 mm	+/-3.5 mm

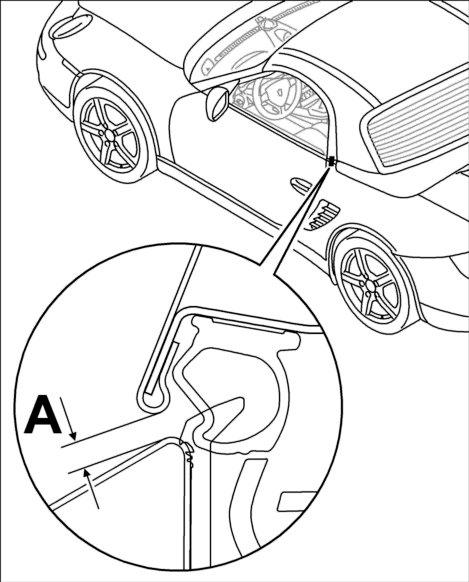

Fig 7: Hardtop to convertible-top compartment lid

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Hardtop to convertible-top compartment lid		Gap dimension A	5.5 mm	+/-3.5 mm
