Gap dimensions, body rear

NOTE:

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap specifications.
Given a clearance in the opening that is too great or too small, the movable body or the accessories must be centerd accordingly.
Ensure that the gaps do not taper or do not narrow at local points.
The given values are guidelines which should be observed as far as possible.
The guidelines apply to repair and assembly work.
Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

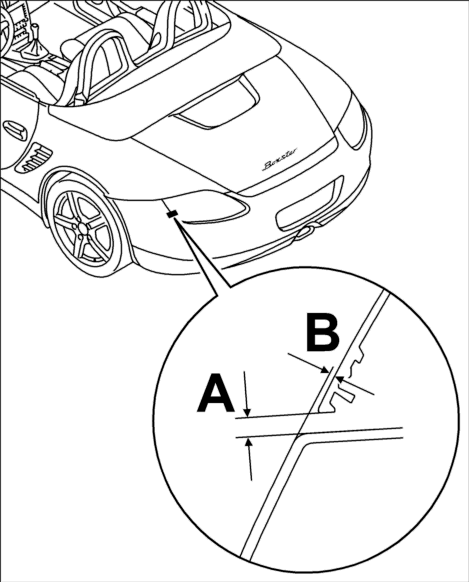

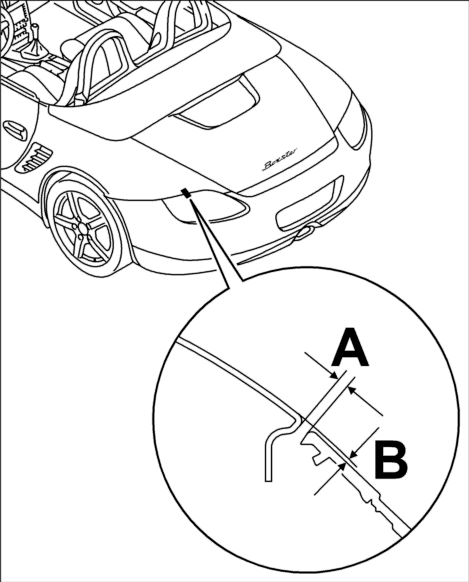

Fig 1: Tail light to outer side section

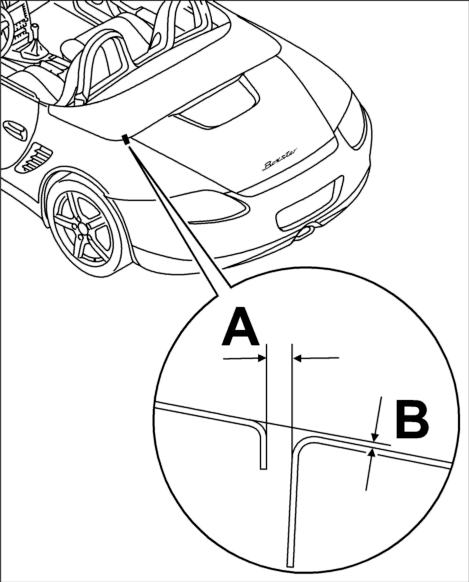

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Tail light to outer side section	Tail light only lowered	Gap dimension A	4 mm	+/-1.5 mm
Tail light to outer side panel		Gap dimension B	1 mm

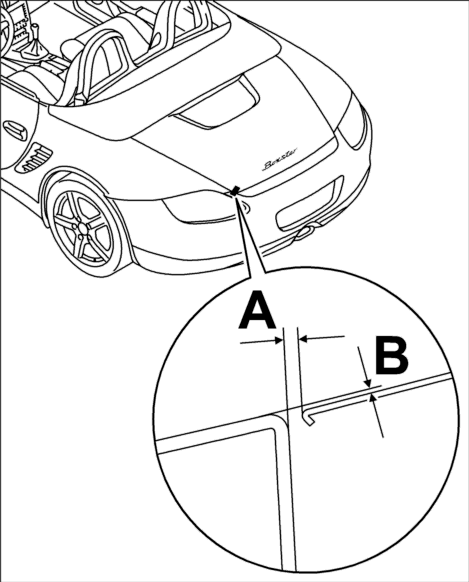

Fig 2: Tail light to center side section

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Tail light to center side section		Gap dimension A	3 mm	+/-0.8 mm
Tail light to center of side panel	Tail light only lowered	Gap dimension B	0.5 mm

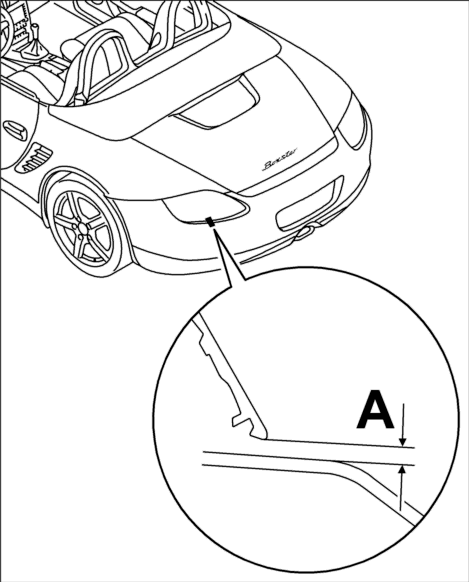

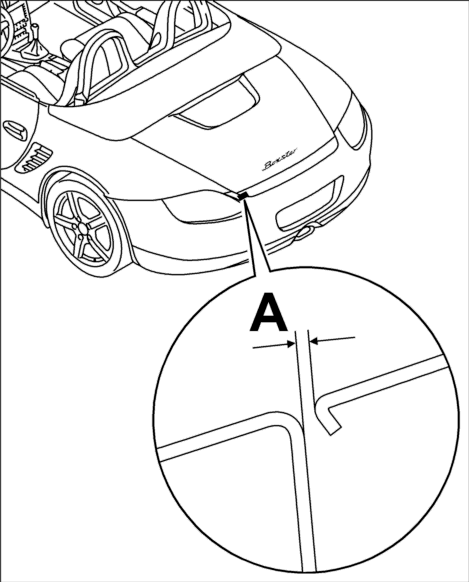

Fig 3: Rear apron to tail light

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear apron to tail light		Gap dimension A	4 mm	+/-1.5 mm

Fig 4: Tail light to inner rear apron

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Tail light to inner rear apron	Determine gap	Gap dimension A	4 mm	+/-1.5 mm

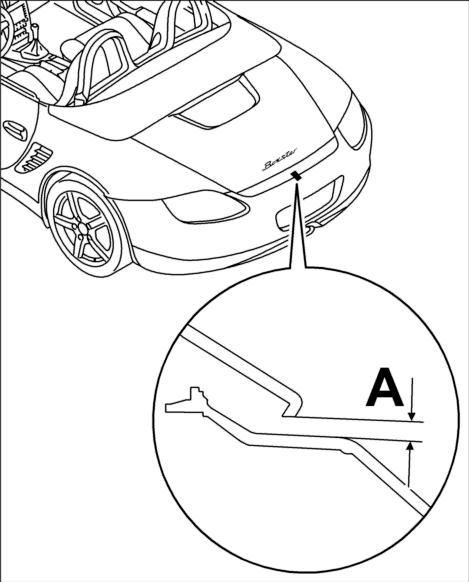

Fig 5: Rear spoiler to rear apron

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear spoiler to rear apron		Gap dimension A	4 mm	+/-1 mm

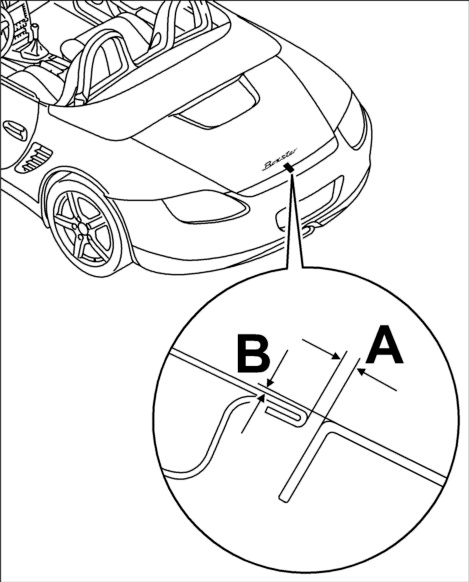

Fig 6: Rear lid to rear spoiler

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to rear spoiler	Rear lid only lowered (max. 1 mm)	Gap dimension A	3.5 mm
Rear lid to rear spoiler		Gap dimension B	0.5 mm

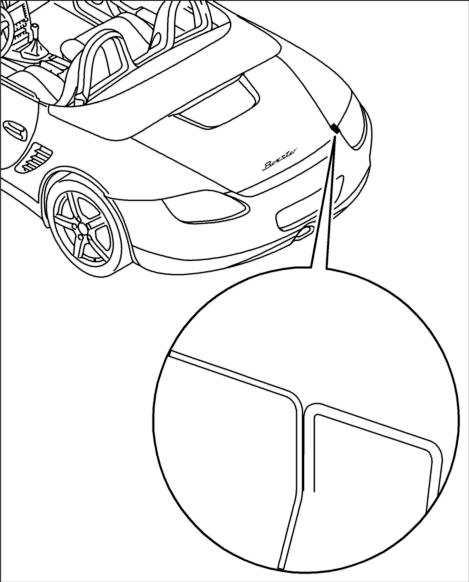

Fig 7: Inner rear apron to side panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Inner rear apron to side panel	Flush

Fig 8: Outer rear spoiler to rear apron

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Outer rear spoiler to rear apron		Gap dimension A	3 mm	+/-0.5 mm

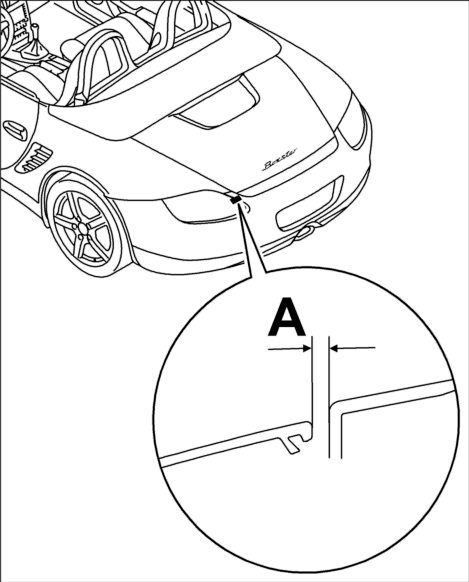

Fig 9: Rear lid to rear apron

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to rear apron	Only lowered	Gap dimension A	4 mm	+1 mm

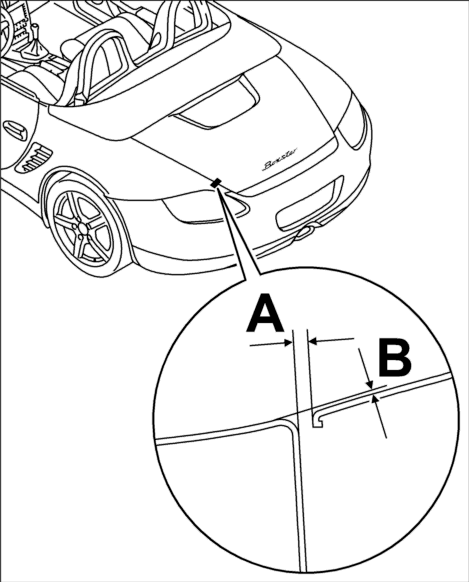

Fig 10: Rear lid to side panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to side panel	Only lowered	Gap dimension A	4 mm	+1 mm
Rear lid to side panel		Gap dimension B	0.6 mm

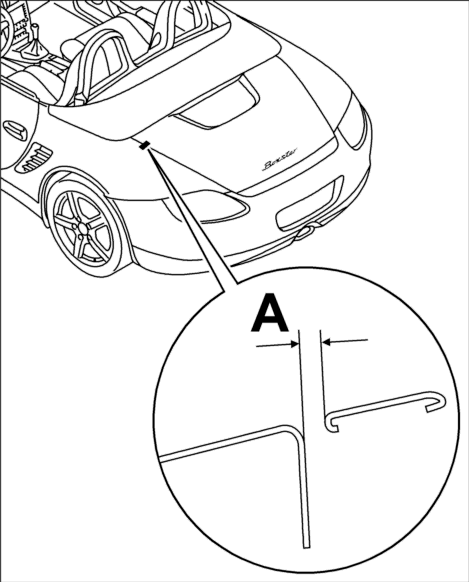

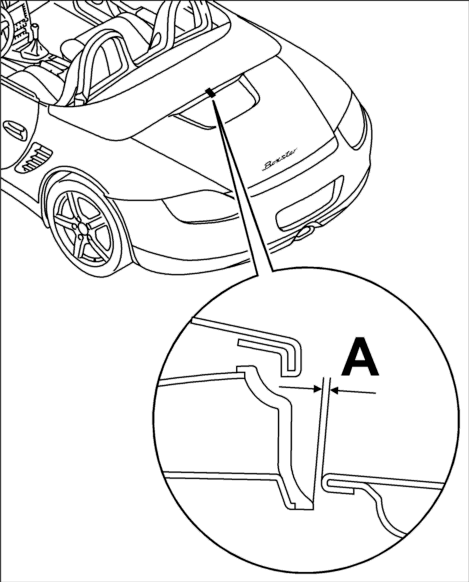

Fig 11: Rear lid to inner convertible-top compartment lid

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to inner convertible-top compartment lid		Gap dimension A	1.4 mm

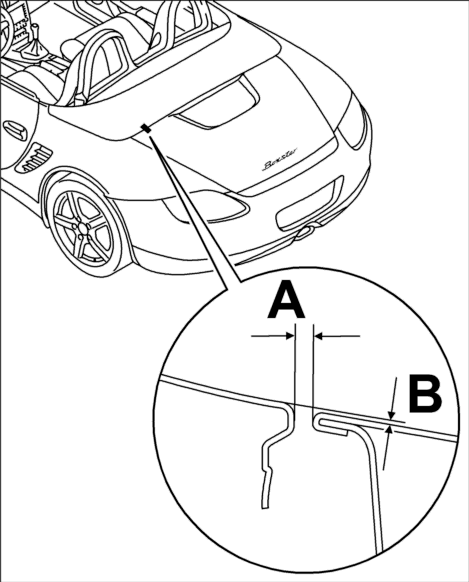

Fig 12: Rear lid to outer convertible-top compartment lid

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to outer convertible-top compartment lid		Gap dimension A	5 mm	+0.5 mm	-1 mm
Rear lid to outer convertible-top compartment lid		Gap dimension B	1 mm

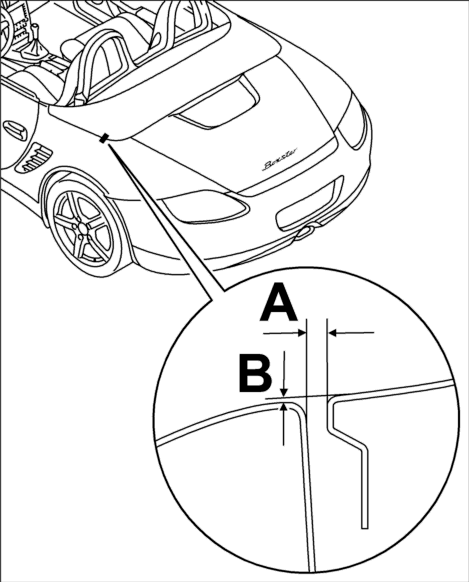

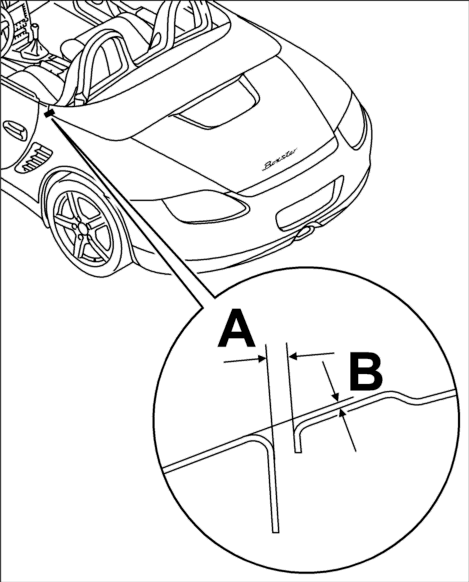

Fig 13: Side panel to convertible-top compartment lid

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Side panel to convertible-top compartment lid	Convertible-top compartment lid only raised (max. 1 mm)	Gap dimension A	5 mm	+0.5 mm	-1 mm
Side panel to convertible-top compartment lid		Gap dimension B	0.8 mm

Fig 14: Side panel to convertible-top compartment lid

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Side panel to convertible-top compartment lid	Convertible-top compartment lid only raised (max. 1 mm). Determine gap	Gap dimension A	4 mm	+1 mm	-0.5 mm
Side panel to convertible-top compartment lid	Only lowered	Gap dimension B	0.6 mm

Fig 15: Outer side panel to convertible-top compartment lid

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Outer side panel to convertible-top compartment lid		Gap dimension A	4 mm	+/-1 mm
Outer side panel to convertible-top compartment lid	Only lowered	Gap dimension B	1 mm

Fig 16: Rear lid to side panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid to side panel	Even transition from front to rear	Gap dimension A	4 mm	+1 mm
