Gap dimensions, body center

NOTE:

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap specifications.
Given a clearance in the opening that is too great or too small, the movable body or the accessories must be centerd accordingly.
Ensure that the gaps do not taper or do not narrow at local points.
The given values are guidelines which should be observed as far as possible.
The guidelines apply to repair and assembly work.
Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

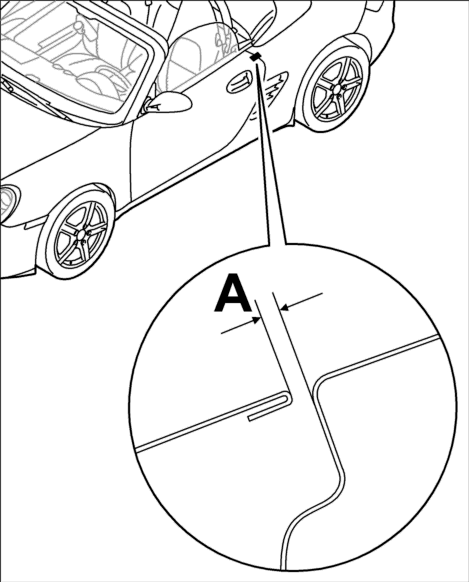

Fig 1: Door to wing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Door to wing		Gap dimension A	4 mm	+/-0.5 mm

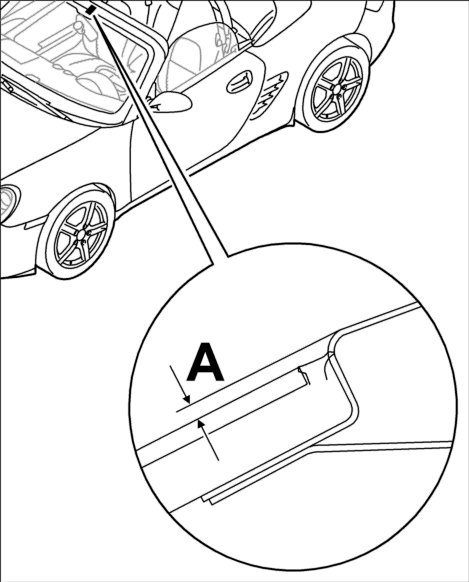

Fig 2: Wing to outer side section

Courtesy of PORSCHE OF NORTH AMERICA, INC.

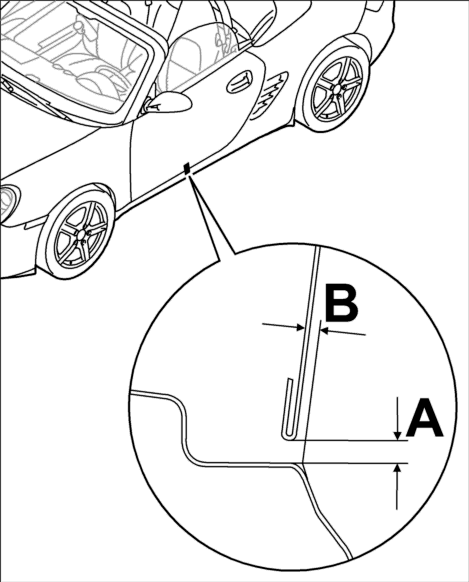

Fig 3: Door to outer side section

Courtesy of PORSCHE OF NORTH AMERICA, INC.

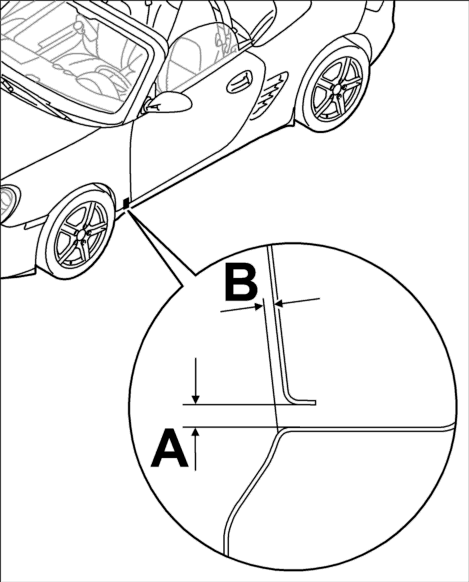

Fig 4: Door to outer side section

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Door to outer side section	Doors only raised	Gap dimension A	4 mm	+/-0.8 mm

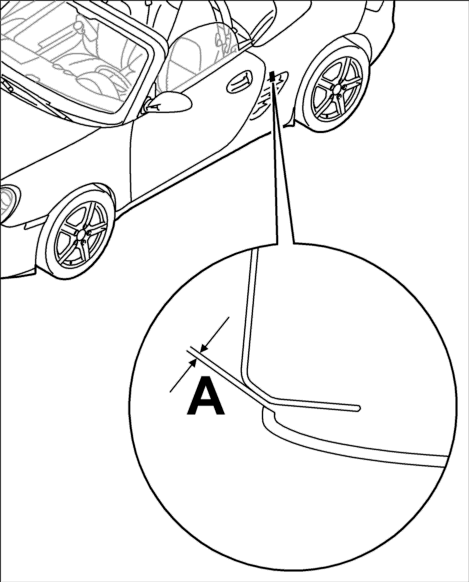

Fig 5: Windscreen to windscreen frame

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Windscreen to windscreen frame	Only lowered	Gap dimension A	2 mm

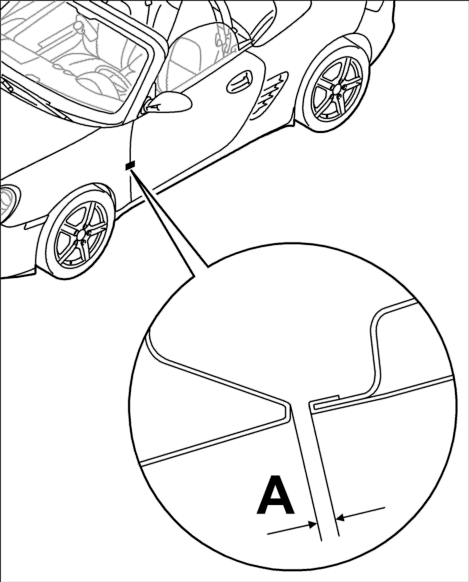

Fig 6: Cowl panel frame to wing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Cowl panel frame to wing	Continuous transition	Gap dimension A	3 mm	+/-1 mm

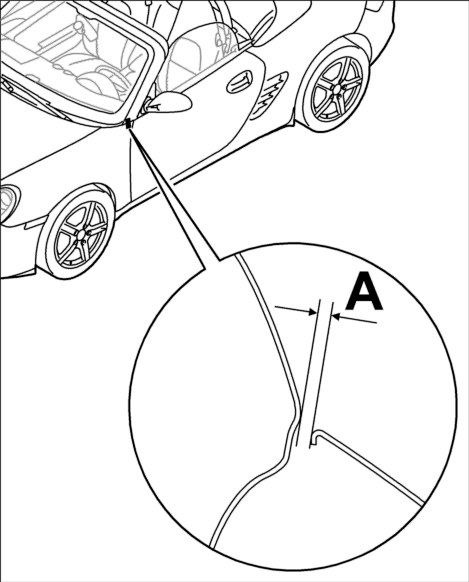

Fig 7: Engine compartment vent to side panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Location	Explanation	Type	Basic value	Tolerance 1	Tolerance 2
Engine compartment vent to side panel		Gap dimension A	1 mm	+/-0.5 mm
