Disconnecting plug connection for radio antenna

Installation Location:

Fig 1: Installation location of cowl panel cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CAUTION: Voltage peaks can damage the audio system.

→ Before unplugging/removing audio components, remove ignition key and switch off audio system.

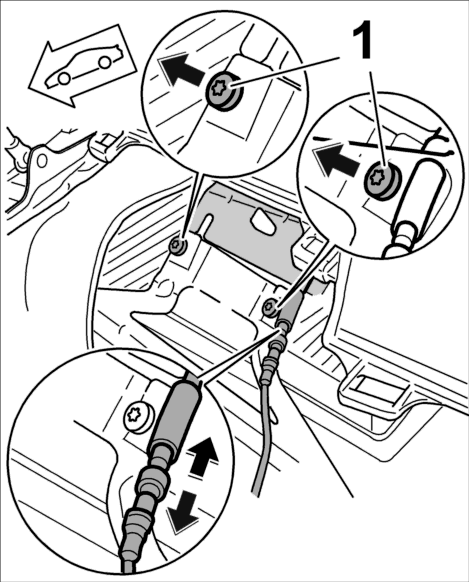

Fig 2: Disconnecting plug connection for radio antenna

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Only for vehicles with radio antenna.

1. Unclip the retaining clamps for the antenna line. Disconnect antenna line and undo the fastening screws -1- . See Fig 2.
