Securing upper cowl panel cover

Installation Location:

Fig 1: Installation location of cowl panel cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

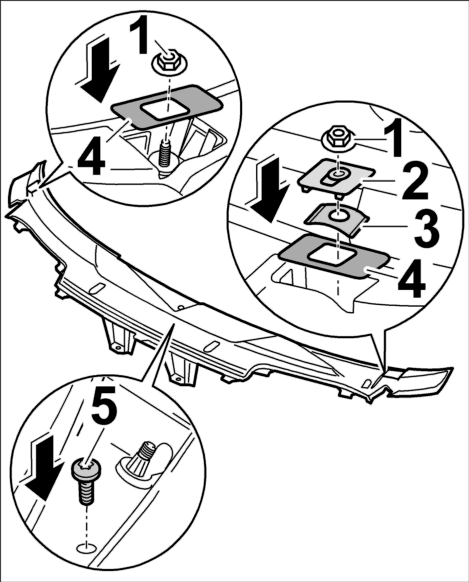

Fig 2: Securing upper cowl panel cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Insert sliding plate -4-  , spring element -3-  and clamping bush -2-  . Tighten fastening nuts -1-  . See Fig 2.

2. Tighten fastening screw -5-  . See Fig 2.
