Locking water line for windscreen washer system

Installation Location:

Fig 1: Installation location of cowl panel cover
G00462397Courtesy of PORSCHE OF NORTH AMERICA, INC.

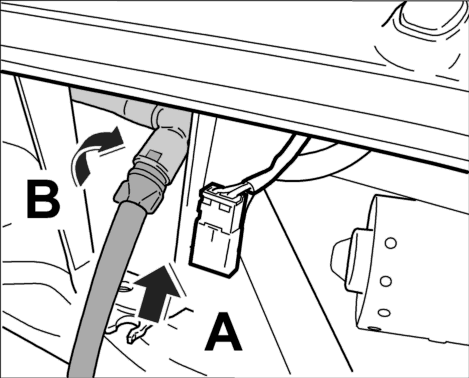

Fig 2: Locking water line for windscreen washer system
GP00011034Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Connect water line -Arrow A-  and rotate in -direction of Arrow B-  . See Fig 2.
