Locking plug connection for GPS antenna

Installation Location:

Fig 1: Installation location of cowl panel cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

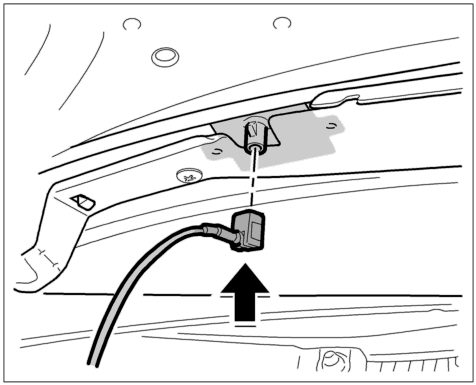

Fig 2: Locking plug connection for GPS

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Only for vehicles with GPS antenna.

1. Push on the electric plug until it clicks into place.
