Removing front side member (section)

Installation Location:

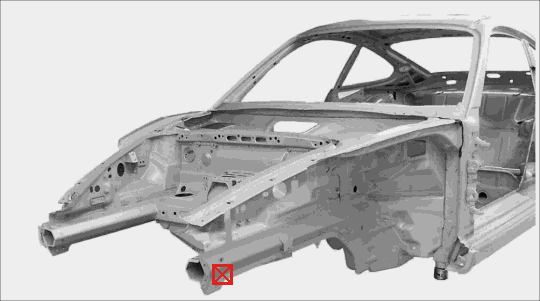

Fig 1: Front Side Member Component Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove front closing panel. → 501055 Replacing end plate - section on "Removing"

NOTE: If you are sure there has been no deformation of the wheel housing and floor front section structure, the cuts can be made without removing the wheel housing and floor front section for the following repair work.

2. Remove front wheel housing (section). → 507455 Replacing front wheel housing (section) - section on "Removing"

3. Remove floor front section. → 502055 Replacing floor front section - removing

WARNING: Possible separation points on inner front side member

Danger of material damage and injury
Cuts can only be made on the inner front side member at dimension -X= 30 mm- , in the marked areas -A- and -B- in front of the tailored blank (laser weld) -1, 2- against the direction of travel. See Fig 2.

→ The possible separation points on the inner front side member are 30 mm in front of the tailored blanks (laser weld) against the direction of travel.

NOTE: Possible separation points on inner front side member.

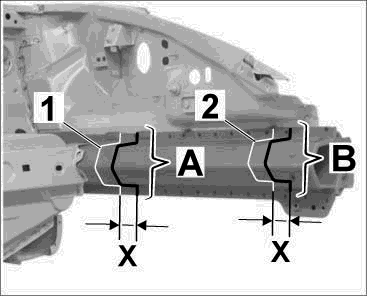

Fig 2: Possible separation points

Courtesy of PORSCHE OF NORTH AMERICA, INC.

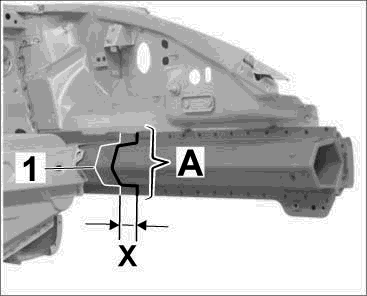

Fig 3: Determining the cut

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Determining the cut

4.1. Determine possible cut on the inner front side member at dimension -X= 30 mm- in front of the tailored blank (laser weld) -1- . Mark the cut. See Fig 3.

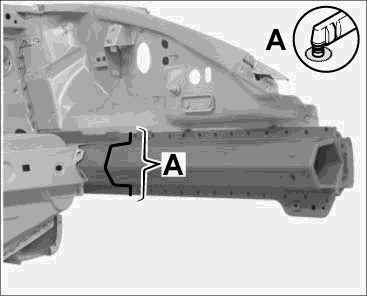

Fig 4: Cutting through inner front side member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Cutting through inner front side member

5.1. Cut through the inner front side member at the marked separation point -A- using the oscillating body saw. Do not damage internal components when doing this. See Fig 4.

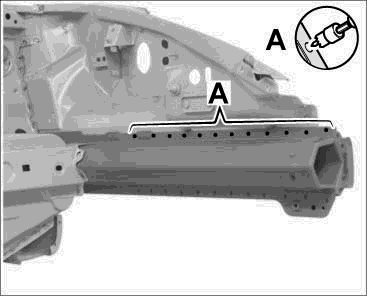

Fig 5: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Milling off spotwelds

6.1. Mill off spotwelds in area -A- using a spotweld cutter. See Fig 5.

NOTE: Ensure that the outer side member is offset by dimension X = min. 50 mm with respect to the inner side member.

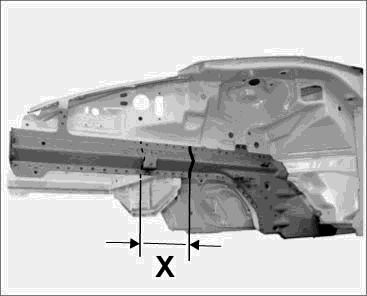

Fig 6: Determining the cut

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Determining the cut

7.1. Mark cut on the outer front side member depending on the damage at dimension -X= min. 50 mm- in front of the inner tailored blank (laser weld) against or in the direction of travel. See Fig 6.

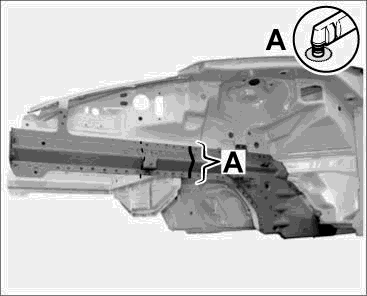

Fig 7: Cutting through outer front side member

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Cutting through outer front side member

8.1. Cut through the outer front side member at the marked separation point -A- using the oscillating body saw. Do not damage internal components when doing this. See Fig 7.

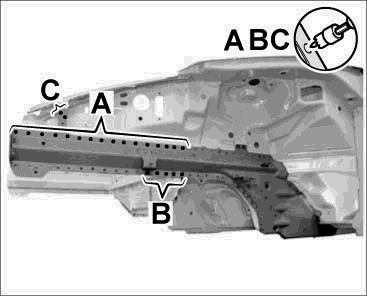

Fig 8: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

9. Milling off spotwelds

9.1. Mill off spotwelds in areas -A, B, C- using a spotweld cutter. See Fig 8.
