Removing outer front side member

Installation Location:

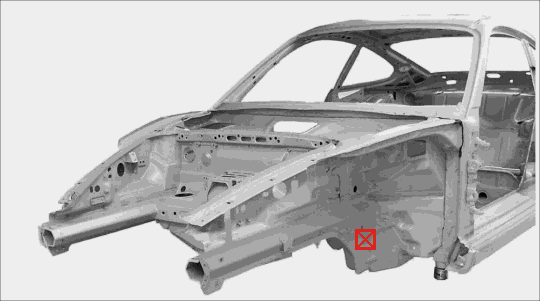

Fig 1: Outer Front Side Member Component Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

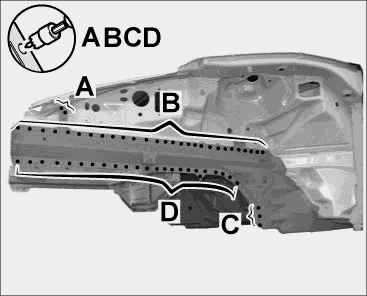

Fig 2: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Mill off spotwelds.

3.1. Mill off spotwelds in areas -A, B, C, D- using a spotweld cutter. See Fig 2.

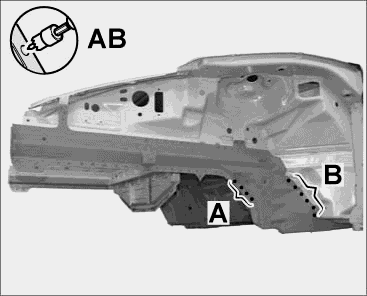

Fig 3: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Mill off spotwelds.

4.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter (2 plate thicknesses). See Fig 3.

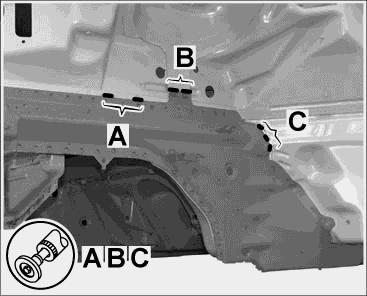

Fig 4: Separating inert-gas welded seams

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Separate inert-gas welded seams.

5.1. Separate welded seams applied using inert gas in areas -A, B, C- using a parting grinder. See Fig 4.

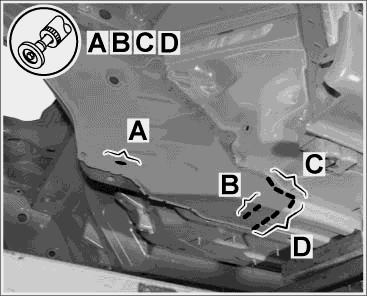

Fig 5: Separating inert-gas welded seams

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Separate inert-gas welded seams.

6.1. Separate welded seams applied using inert gas in areas -A, B, C, D- using a parting grinder. See Fig 5.

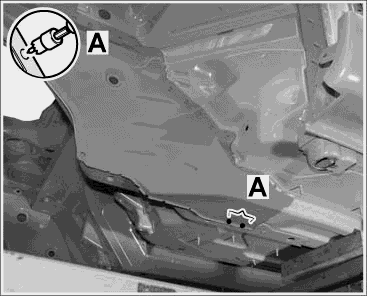

Fig 6: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Mill off spotwelds.

7.1. Mill off spotwelds in area -A- using a spotweld cutter. See Fig 6.

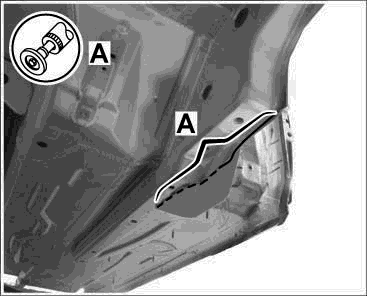

Fig 7: Separating inert-gas welded seams

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Separate inert-gas welded seams.

8.1. Separate welded seams applied using inert gas in area -A- from below using a parting grinder. See Fig 7.
