Removing reinforcement for front wheel housing

Installation Location:

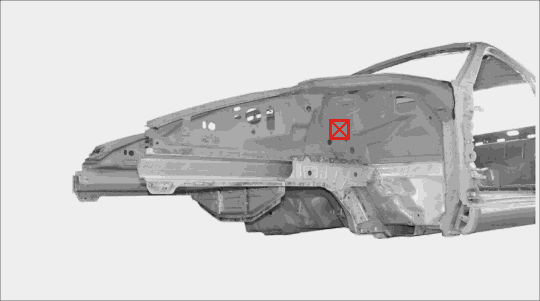

Fig 1: Front Wheel Housing Component Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove outer front side member. → 507755 Replacing outer front side member - section on "Removing"

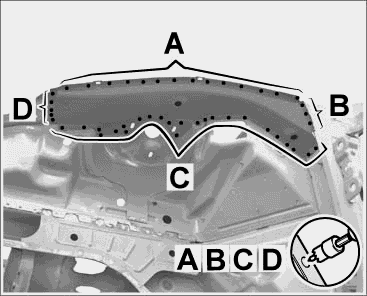

Fig 2: Removing reinforcement for front wheel housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Mill off spotwelds.

2.1. Mill off spotwelds in areas -A, B, C, D-  using a spotweld cutter. See Fig 2.
