Removing front wheel housing

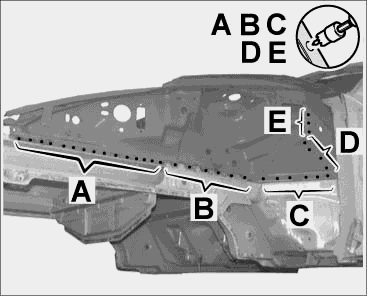

Fig 1: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Mill off spotwelds.

1.1. Mill off spotwelds in areas -A, B, C, D, E- using a spotweld cutter. See Fig 1.

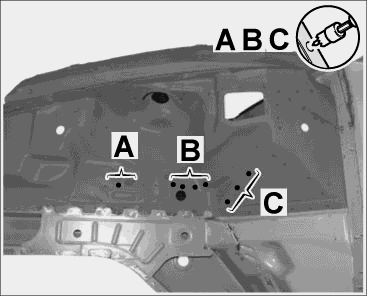

Fig 2: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Mill off spotwelds.

2.1. Mill off spotwelds in areas -A, B, C- using a spotweld cutter. See Fig 2.

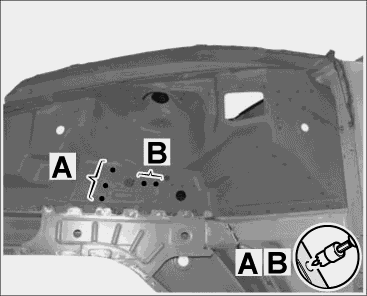

Fig 3: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Mill off spotwelds.

3.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter (2 plate thicknesses). See Fig 3.

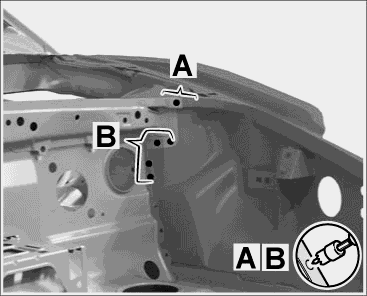

Fig 4: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Mill off spotwelds.

4.1. Mill off spotwelds on reinforcement for wheel housing in areas -A- and -B- using a spotweld cutter. See Fig 4.

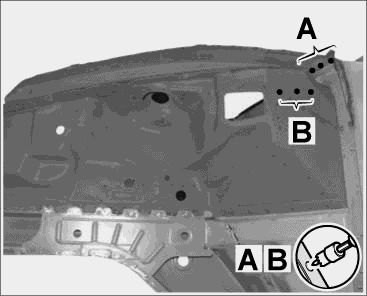

Fig 5: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Mill off spotwelds.

5.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter. See Fig 5.

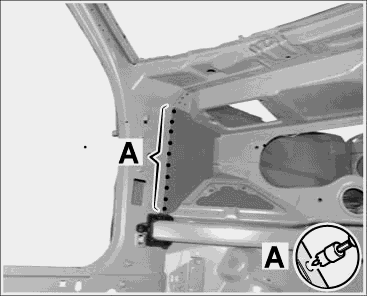

Fig 6: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Mill off spotwelds.

6.1. Mill off spot welds in area -A- for the hinge pillar using a spotweld cutter. See Fig 6.

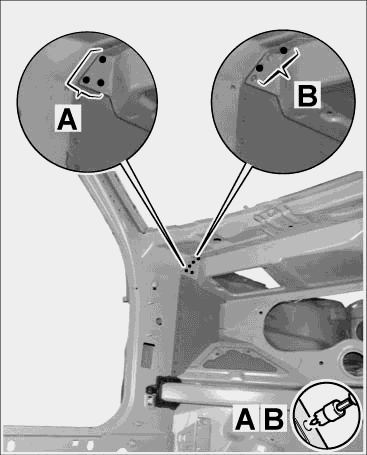

Fig 7: Cutting the spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Mill off spotwelds.

7.1. Mill off spotwelds in area -A- using a spotweld cutter (1 plate thickness). See Fig 7.

7.2. Mill off spotwelds in area -B- using a spotweld cutter (2 plate thicknesses). See Fig 7.
