Installing reinforcement for front wheel housing

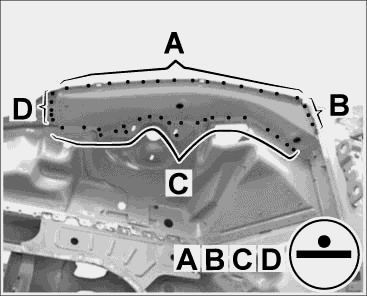

Fig 1: Welding in reinforcement for front wheel housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Determine the position of the new part and secure with tensioning clamps.

When butt welding body sheet panels with a sheet thickness of > 1.5 mm, there must be a welding slit width s = 1 x sheet thickness to guarantee the required welding quality (welding through).

1. Weld in reinforcement for front wheel housing.

1.1. Resistance spot-weld reinforcement for front wheel housing in areas -A, B, C, D- . See Fig 1.

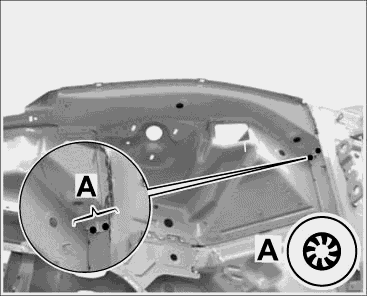

Fig 2: Welding in reinforcement for front wheel housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Weld in reinforcement for front wheel housing.

2.1. Plug-weld reinforcement for front wheel housing in area -A- using inert gas. See Fig 2.

3. Install front outer side member. → 507755 Replacing outer front side member - section on "Installing"
