Removing front wheel housing (section)

Installation Location:

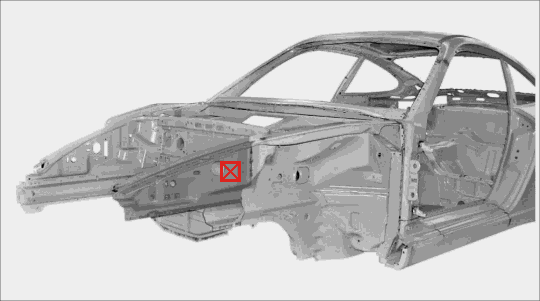

Fig 1: Front Wheel Housing Component Location (Section)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove front side member (section). → 507955 Replacing front side member (section) - section on "Removing" [987321] → 507955 Replacing front side member (section) - section on "Removing" [987120 987121 987310 987311 987320]

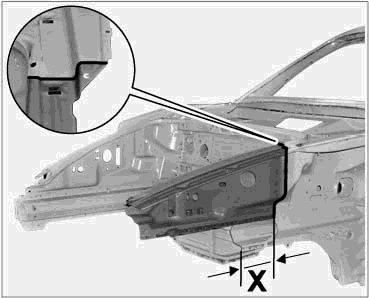

Fig 2: Determining the cut

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Determining the cut

2.1. Mark position of cut on front wheel housing at dimension -X= 140 mm-  from cut on inner side member against the direction of travel so that the outer side member is offset with respect to the front wheel housing. See Fig 2.

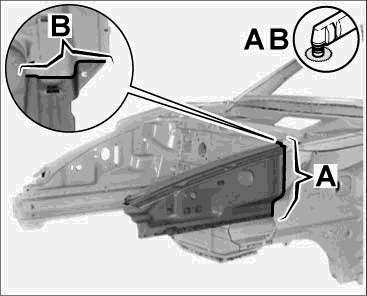

Fig 3: Cutting through front wheel housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Cutting through front wheel housing

3.1. Cut through the front wheel housing at the marked separation points -A-  and -B-  using the oscillating body saw. Do not damage internal components when doing this. See Fig 3.

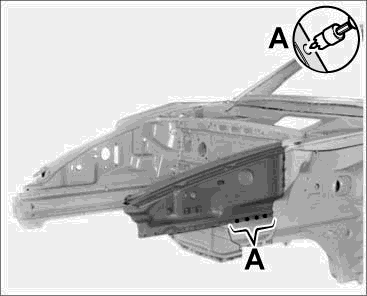

Fig 4: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Milling off spotwelds

4.1. Mill off spotwelds in area -A-  using a spotweld cutter. See Fig 4.
