Installing front wheel housing (section)

NOTE: When butt welding body sheet panels with a sheet thickness of > 1.5 mm, there must be a welding slit width s = 1 x sheet thickness to guarantee the required welding quality (welding through).

1. Fitting in front wheel housing

1.1. Place the front wheel housing against the body and secure to the straightening set.

1.2. Fix the front wheel housing in place with tensioning clamps.

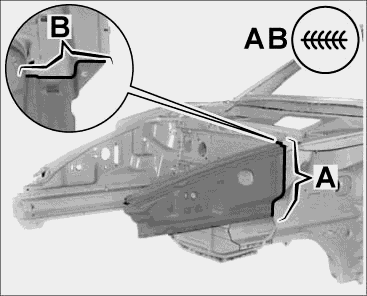

Fig 1: Welding in front wheel housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Welding in front wheel housing

2.1. Apply a full weld to the front wheel housing in areas -A- and -B- using inert gas. See Fig 1.

3. Install front side member (section). → 507955 Replacing front side member (section) - section on "Installing" [987321] → 507955 Replacing front side member (section) - section on "Installing" [987120 987121 987310 987311 987320]
