Installing front wheel housing liner - rear section

Installation Location:

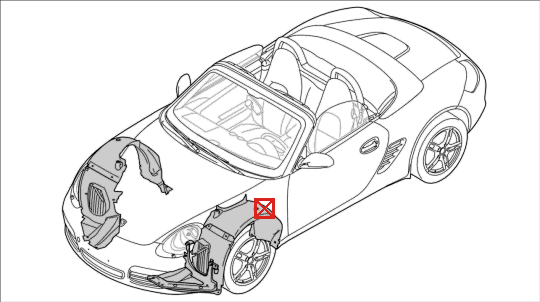

Fig 1: Installation position of front wheel housing liner

Courtesy of PORSCHE OF NORTH AMERICA, INC.

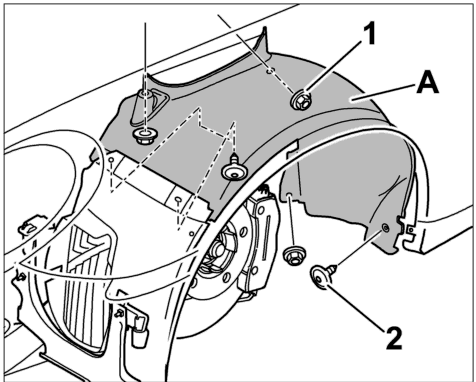

Fig 2: Fasten wheel housing liner part A

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Push in wheel housing liner toward the outside up to contact in wing stop position.
Ensure that the right wheel housing liner is guided through the opening on the wheel well.

1. Insert wheel housing liner -A- . See Fig 2.

2. Screw on fastening nuts -1- and tighten to the specified tightening torque→ Final tightening: 1 ftlb. . See Fig 2.

3. Screw in fastening screws -2- and tighten to the specified tightening torque→ Final tightening: 1.5 ftlb. . See Fig 2.
