Releasing wing from A-pillar

Installation Location:

Fig 1: Installation location of wing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

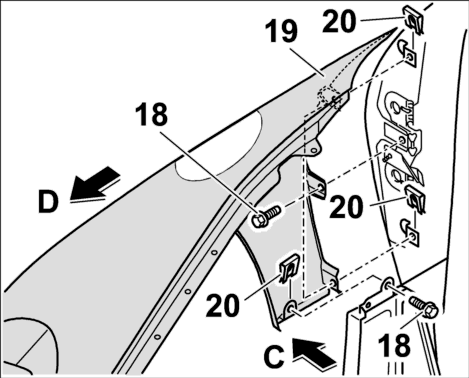

Fig 2: Releasing wing from A-pillar

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Unscrew fastening screws -18-  at A-pillar and pull wing out -19-  downwards -C-  and forwards -D-  . See Fig 2.

2. Check fastening nut -20-  , replacing if necessary. See Fig 2.

3. Remove switching element for filler flap. Refer to 55 38 19 Removing and installing switching element for filler flap - as of MY 2005 (All Models) .
