Installing retaining strip

Installation Location:

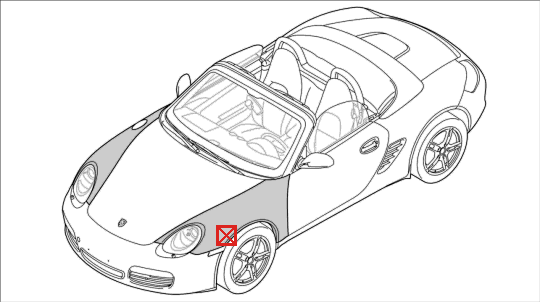

Fig 1: Installation location of wing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

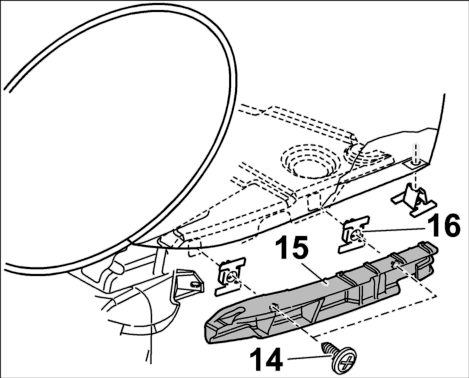

Fig 2: Installing retaining strip

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Clip fastening nuts -16-  into place. Fix retaining strip -15-  on the wing up against the stop and tighten with the fastening nuts -14-  . Tightening torque → Tightening torque: 2.0 ftlb.  See Fig 2.
