Installing masking panel

Installation Location:

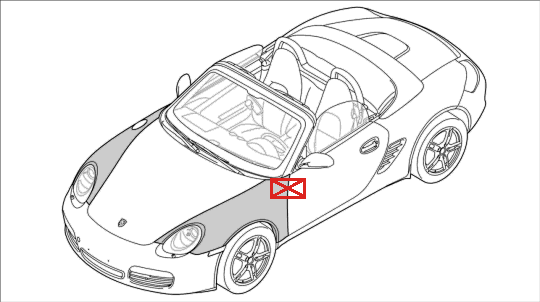

Fig 1: Installation location of wing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 2: Installing masking panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Position masking panel -2-  on wing -3-  . See Fig 2.

2. Press in plastic expansion rivet -1-  and secure with pin. See Fig 2.
