Installing fuel tank cap

Installation Location:

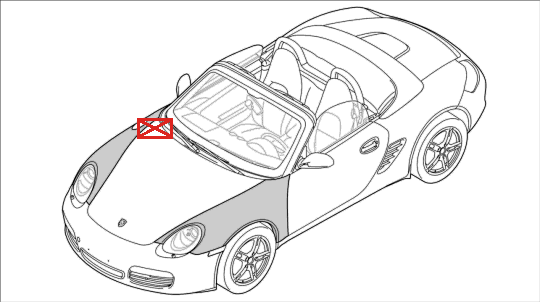

Fig 1: Installation location of wing
G00462387Courtesy of PORSCHE OF NORTH AMERICA, INC.

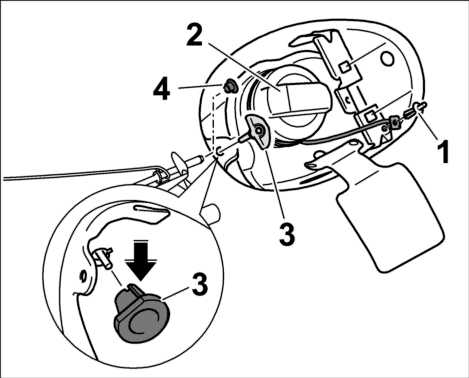

Fig 2: Installing fuel tank cap
GP00010822Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • The following points apply only to the right wing.

1. Press in plastic expansion rivet -1-  on fuel tank cap -2-  . Then clip in rubber stop -3-  and rubber sleeve -4-  . See Fig 2.
