Fastening tank filler neck

Installation Location:

Fig 1: Installation location of wing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

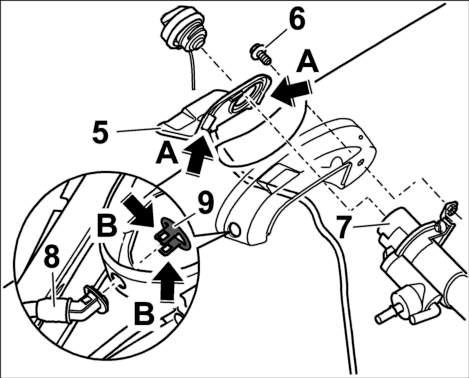

Fig 2: Fastening tank filler neck

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

1. Install angled pipe -8- . Press in the plastic clip -9- until the locking tabs -B- engage audibly. See Fig 2.

2. Tighten fastening screw -6- on tank filler neck -7- . Tightening torque → Tightening torque: 7.5 ftlb. See Fig 2.

3. Press in the locking tabs -A- of the sleeve -5- until they engage audibly. See Fig 2.
