Fastening bottom of wing

Installation Location:

Fig 1: Installation location of wing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

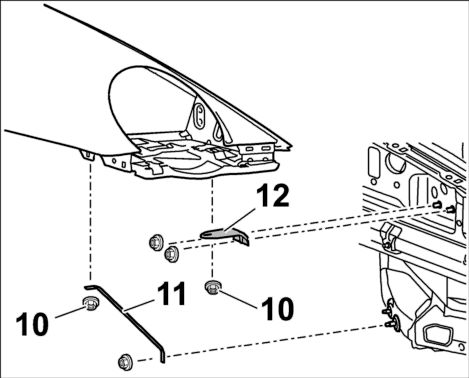

Fig 2: Fastening bottom of wing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Position wing strut -11-  and bracket -12-  on the body and tighten with fastening nuts -10-  . Tightening torque → Tightening torque: 7.0 ftlb.  See Fig 2.
