Removing front panel

Installation Location:

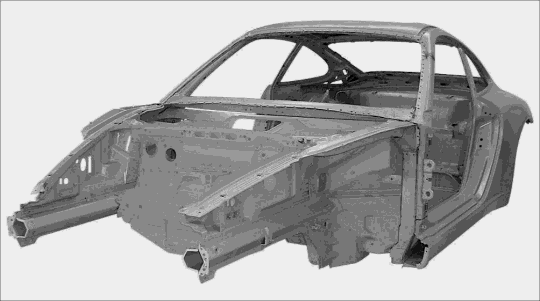

Fig 1: Front Panel Component Location
GP00010719Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove end plate. → 501055 Replacing end plate - section on "Removing"

2. Remove floor front section. → 502055 Replacing floor front section - section on "Removing"

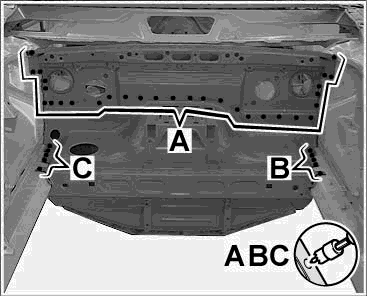

Fig 2: Milling off spotwelds
GP00010720Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Milling off spotwelds

3.1. Mill off spotwelds in areas -A, B, C-  using a spotweld cutter. See Fig 2.

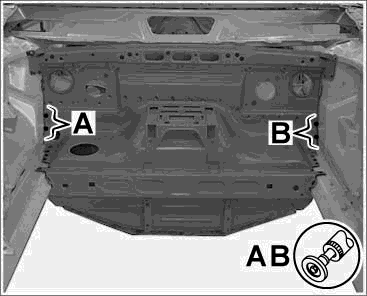

Fig 3: Separating spotwelds
GP00010721Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Separating spotwelds

4.1. Separate spotwelds in areas -A-  and -B-  using a parting grinder. See Fig 3.

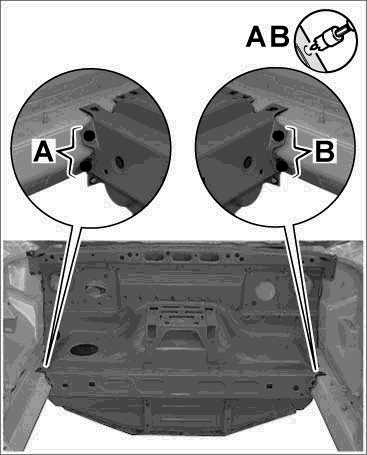

Fig 4: Milling off spotwelds
GP00010722Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Milling off spotwelds

5.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter. See Fig 4.

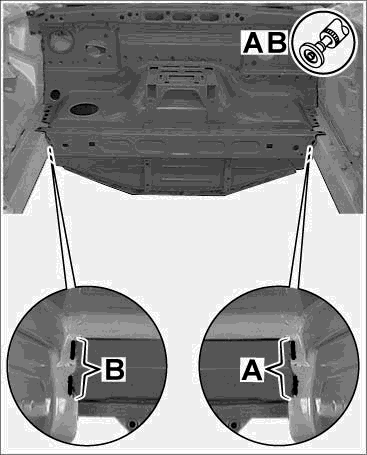

Fig 5: Separating spotwelds
GP00010723Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Separating inert-gas welded seams

6.1. Separate inert-gas welded seams in areas -A-  and -B-  using a parting grinder. See Fig 5.
