Preparing connection areas of the body for installing the front panel

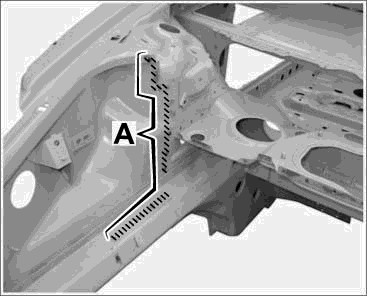

Fig 1: Cleaning the welding areas

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked area -A-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 1.

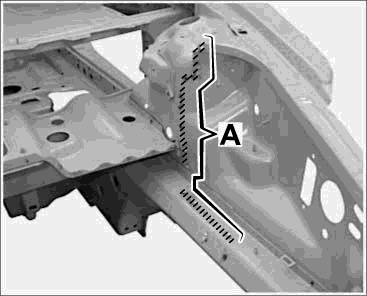

Fig 2: Cleaning the welding areas

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked area -A-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 2.

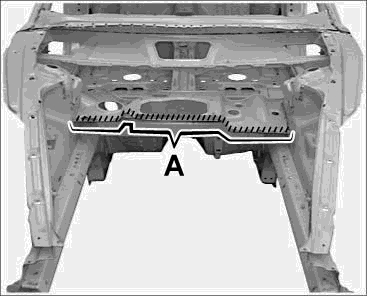

Fig 3: Cleaning the welding areas

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked area -A-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 3.

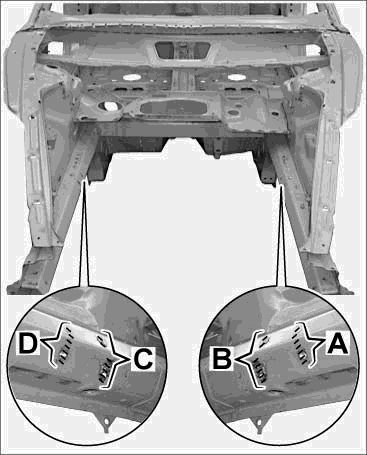

Fig 4: Cleaning the welding areas

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C, D-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 4.

5. Coating spot-weld flange areas with zinc powder paint

5.1. Coat spot-weld flange areas with zinc powder paint.
