Removing front closing panel

Installation Location:

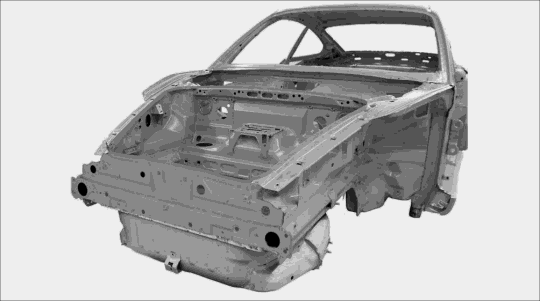

Fig 1: Installation position of front closing panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

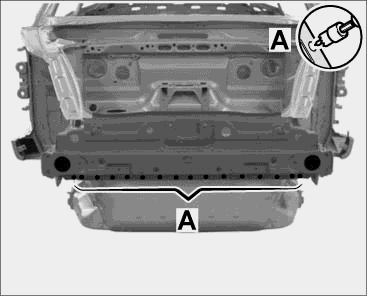

Fig 2: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Milling off spotwelds

1.1. Mill off spotwelds in area -A- using a spotweld cutter. See Fig 2.

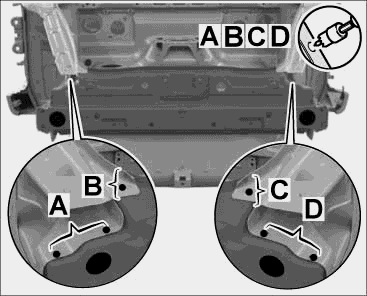

Fig 3: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Milling off spotwelds

2.1. Mill off spotwelds in areas -A, B, C, D- using a spotweld cutter. See Fig 3.

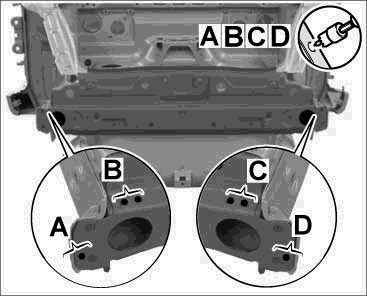

Fig 4: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Milling off spotwelds

3.1. Mill off spotwelds in areas -A, B, C, D- using a spotweld cutter. See Fig 4.

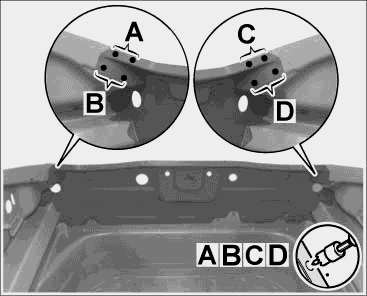

Fig 5: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Milling off spotwelds

4.1. Mill off spotwelds in areas -A, B, C, D- using a spotweld cutter. See Fig 5.

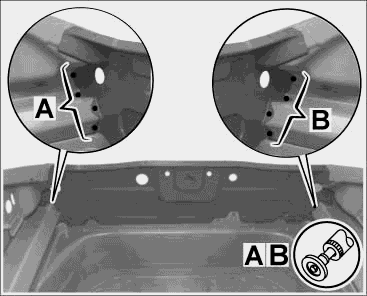

Fig 6: Separating spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Separating spotwelds

5.1. Separate spotwelds in areas -A- and -B- using a parting grinder. See Fig 6.

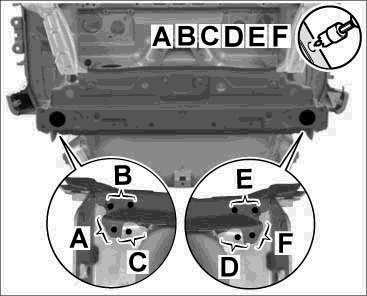

Fig 7: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Milling off spotwelds

6.1. Mill off spotwelds in areas -A, B, C, D, E, F- using a spotweld cutter. See Fig 7.
