Preparing connection areas of the body for installing the front closing panel

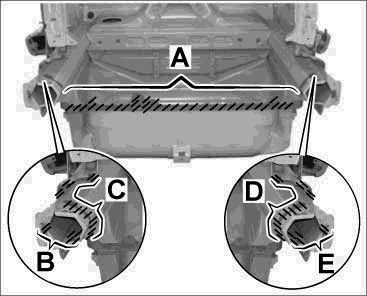

Fig 1: Preparing connection areas of the body for installing the front closing panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Clean undersealing, adhesive residue and paint off the body connecting flanges in the marked areas -A, B, C, D, E-  using a hot-air gun or rotary brush. Grind the connecting flanges until bare. See Fig 1.

2. Coating spot-weld flange areas with zinc powder paint

2.1. Coat all spot-weld flange areas with zinc powder paint.
