42 38 19 Removing and installing rear-axle carrier side section - as of MY 2005 (All Models): Information: Information

NOTE: Pay attention to the following in order to remove the support plate without tension:

Lift the vehicle only at the jacking points provided using a uniformly adjusted platform lift. Align lifting arms evenly (in order to avoid distortion).

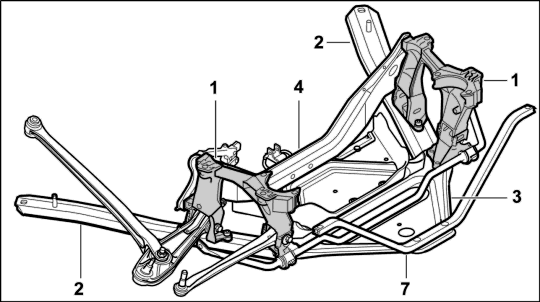

Fig 1: Overview of rear-axle carrier side section

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1 - Rear-axle carrier side section

2 - Diagonal brace

3 - Support plate

4 - Cross member

7 - V-brace
