Installing support plate

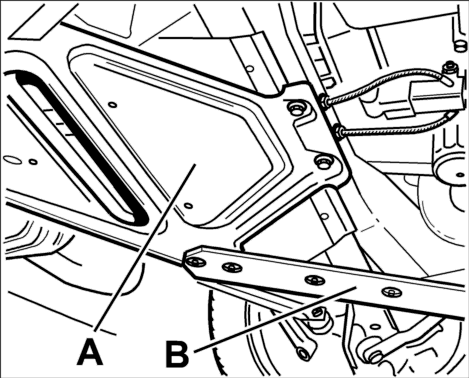

Fig 1: Support plate

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Insert support plate -A-  without undue force → 421419 Removing and installing support plate - section on "Information" . See Fig 1.

2. right and left diagonal braces -B-  . See Fig 1.

3. Tighten screws and nuts to the specified torque → 420000 Tightening torques for rear axle .

4. Fit rear underbody panel.
