Removing rear trunk floor panel

1. Remove closing cross member. → 531655 Replacing closing cross member- chapter on "Removing"

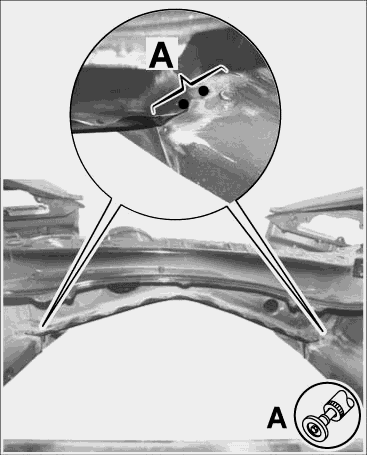

Fig 1: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Milling off spotwelds

2.1. Mill off spotwelds from below in area -A-  using a spotweld cutter. See Fig 1.

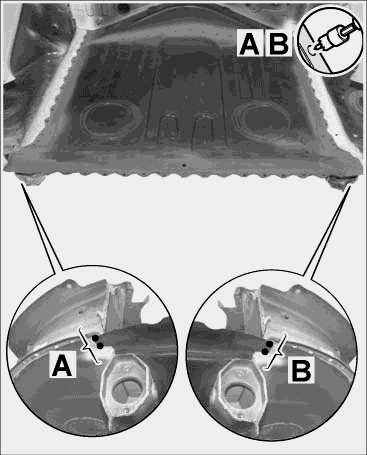

Fig 2: Separating spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Separating spotwelds

3.1. Separate spotwelds at the left and right in area -A-  using a parting grinder. See Fig 2.

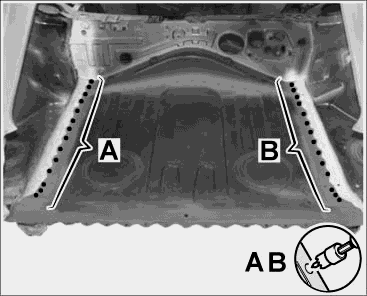

Fig 3: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Milling off spotwelds

4.1. Mill off spotwelds in areas -A-  and -B-  using a spotweld cutter. See Fig 3.

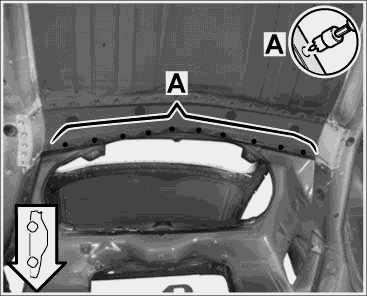

Fig 4: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Milling off spotwelds

5.1. Mill off spotwelds from below in areas -A-  and -B-  using a spotweld cutter. See Fig 4.
