Removing rear trunk floor panel (section)

Installation Location:

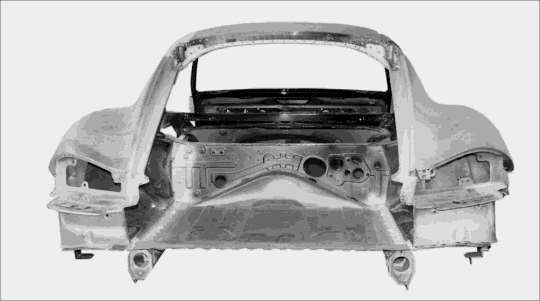

Fig 1: Rear Trunk Floor Panel Component Location (Section)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove closing cross member. → 531655 Replacing closing cross member- chapter on "Removing"

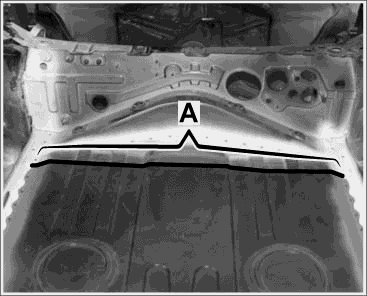

Fig 2: Determining the cut

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Determining the cut

2.1. Position rear trunk floor panel separation point -A- so that the rear trunk floor panel spare part overlaps by approx. 40 mm. Mark the separation point. See Fig 2.

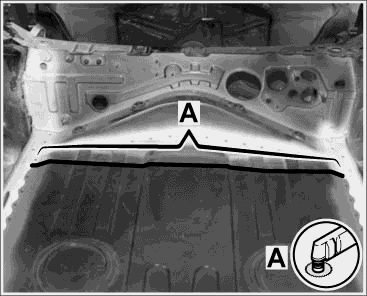

Fig 3: Cutting through rear trunk floor panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Cutting through rear trunk floor panel

3.1. Cut through rear trunk floor panel in front of the laser weld (visible continuous weld in rear trunk floor panel) on the marked connection point -A- with the oscillating body saw. See Fig 3.

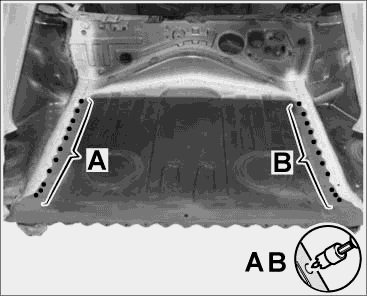

Fig 4: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Milling off spotwelds

4.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter. See Fig 4.

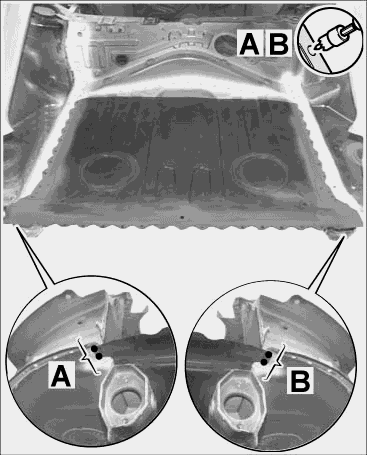

Fig 5: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Milling off spotwelds

5.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter. See Fig 5.
