Removing side section reinforcement

Installation Location:

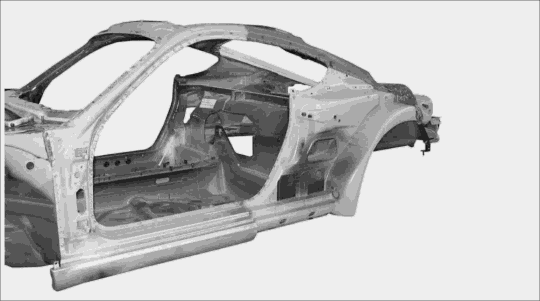

Fig 1: Side Section Reinforcement Component Location

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove outer hinge pillar. → 513755 21 Replacing outer hinge pillar - chapter on "Removing"

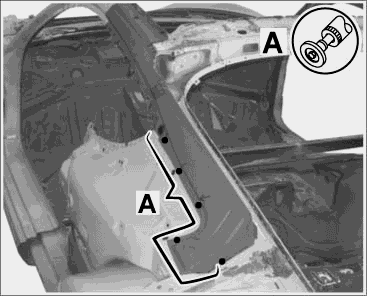

Fig 2: Loosening riveted joints

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Loosening riveted joints

3.1. Cut through riveted joints in area -A- using a parting grinder and remove. See Fig 2.

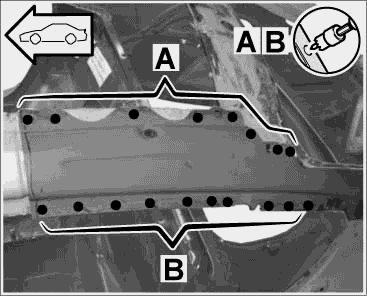

Fig 3: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Milling off spotwelds

4.1. Mill off spotwelds in area -A- and -B- using a spotweld cutter. See Fig 3.

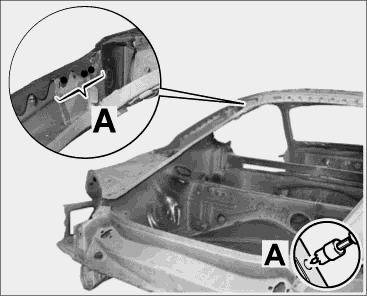

Fig 4: Milling off spotwelds

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Milling off spotwelds

5.1. Mill off spotwelds in area -A- using a spotweld cutter. See Fig 4.

NOTE: Removing expanded sealant

The side section reinforcement is factory-sealed for roof reinforcement with expanded sealant in area. -Y- . See Fig 5.
The expanded sealant will be destroyed when you change the side section reinforcement and must be replaced.

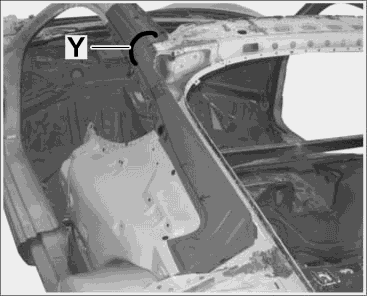

Fig 5: Expanded sealant

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Separating body parts

In the case of bonded panel joints with a hardened bonded layer on the outer panel, apply a generous amount of heat to heat up the outer panel in the area of the spotwelds. Refer to 50 IN Processing structural body adhesive - as of MY 2005 (All Models) .
After removing the loosened body part, old adhesive must be removed and any uneven spots sanded down. The flange area must then be pre-treated for bonding. For the procedure see: Information on the use of structural adhesive in vehicle manufacturing Refer to 50 IN Processing structural body adhesive - as of MY 2005 (All Models) .

6. Separating bonded joints and removing expanded sealant

6.1. Heat up bonded joints in the area between the side section reinforcement and body using the Leister Elektron hot-air gun; see Gr. 3.5, Workshop Equipment Manual 00000 and remove side section reinforcement.
